Sprite X0 Museum Showcase Light

|

Overview

Features

Light Planning

Accessories

Lighting Design Data Downloads

Sprite X0

12mm dia with zoom optics,
extremely slim, focusing on the
important of the importances.

akzu,museum showcase lighting,musuem showcase light,museum display case lighting,cultural relic display lighting,exhibition cabinet lighting,embedded display case lighting,suspended showcase lighting,constant temperature display lighting,anti-glare display case lighting,low lux display lighting,display spectrum optimization,flicker-free display lighting,UV-blocking display lighting,heritage protective display lighting,display illuminance uniformity,smart dimming for showcase,AI showcase lighting,display color rendering optimization,closed display case lighting,glass showcase lighting,museum exhibition cabinet lighting

Sprite X0, with a diameter of 12mm only
and Duolens zoom optics, may be
the world's smallest zoomable Museum showcase light.

Sprite X0, extremely exquisite, balancing optics, light efficiency, and heat dissipation. ∅ 12mm, zoom 9° ~23° , power of 0.5W and 1W, it may be the world's smallest zoomable Museum Showcase Light. For power 1W, the illumination can reach 700Lux at a distance of 50cm; and at 1m, it is still as high as 180Lux! Stand mounting, surface mounting, recessed mounting and track mounting are optional.

Sprite X0 is suitable for showcases with a height of less than 2m and an illumination distance of less than 1m.

Suitable for independent showcases, floor showcases, flat showcases and niche showcases.
Wattage: 0.5W, 1W
Input voltage: 3V/12V
LED module: high-power LEDs, high transmittance focusing lens, LED life span over 50000 hours
Beam angle: zoom 9° ~23°
Color temperature: 3000K, 3500K, 4000K, optional 2700K, 5000K, etc.
Color rendering index: 95
Luminous flux*: 60lm~105lm
Installation method: stand mounting, surface mounting, recessed mounting, track mounting
Rotation & tilt: 360° rotation, 90° tilt (30° tilt for recessed mounting/150° tilt for stand mounting)
Adapter: single-circuit
Control mode: DALI, group dimming, phase-cut dimming, bluetooth dimming, and etc.
Brightness control range: 0-100%
Color: black, white
Housing: machining aluminum alloy, anodized

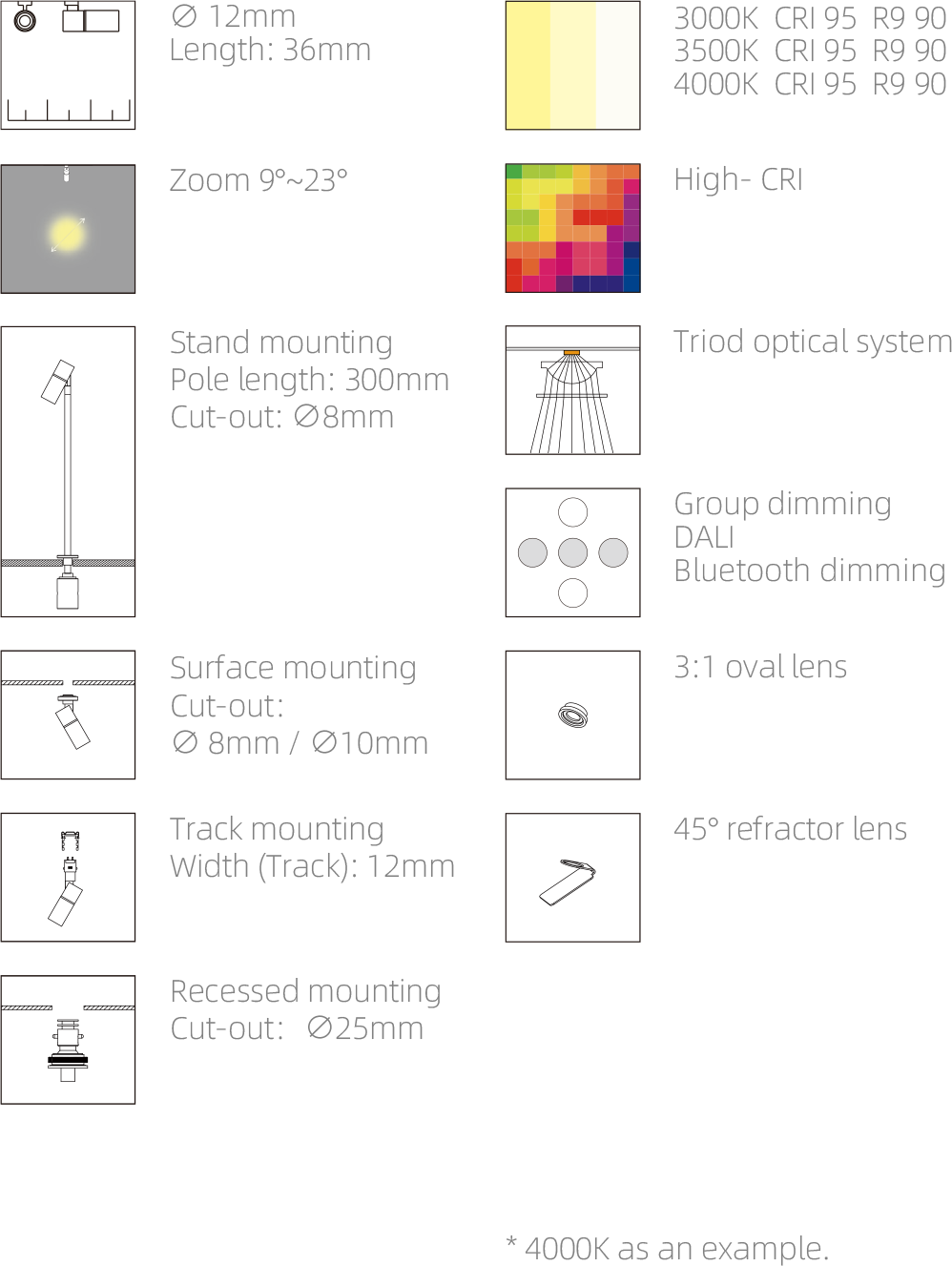

Sprite X0 Technical Specifications

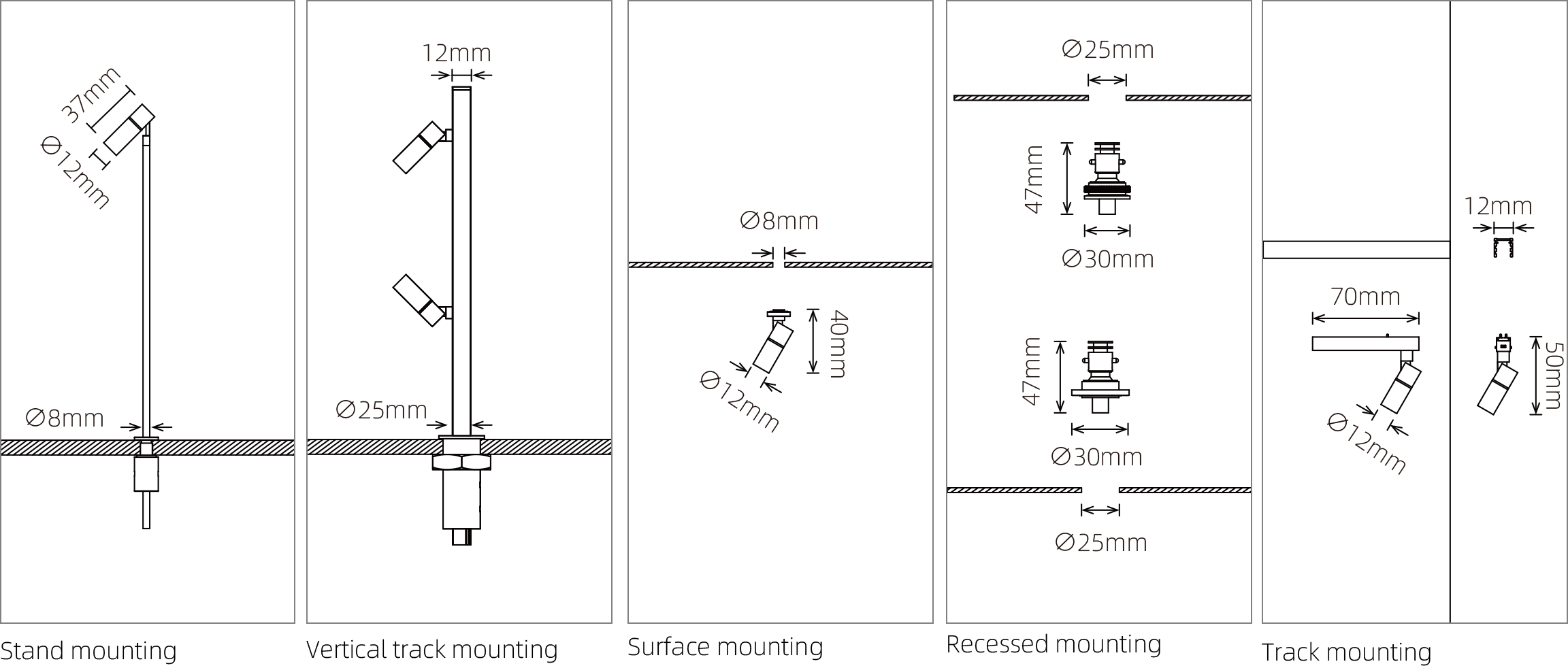

Product construction size

Powers & Light Distribution*

*Power refers to total system power; luminous flux data is based on LED module output.

Features

Only 12 mm in diameter, possibly the smallest zoomable museum showcase light.

Sprite X0 challenges the design limit, balancing optics, light efficiency and heat dissipation. The surface is sandblasted and matte treated to minimize the presence of the lamp.

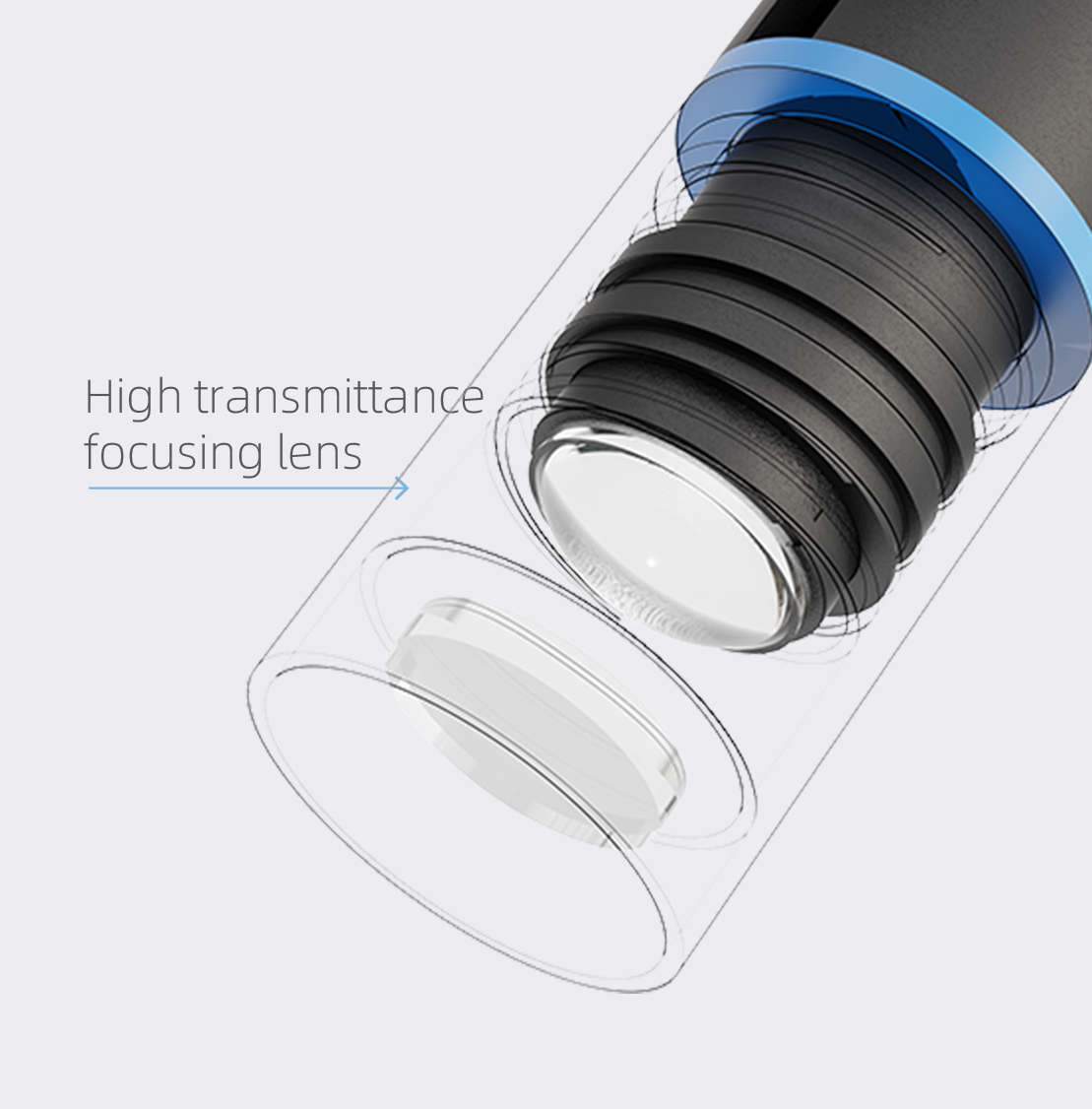

Innovative Duolens zoom optics, the light type in each focal length is pure and smooth.

Light outlet size of 12mm, zoom 9° ~23° , power 0.5W, supporting stand mounting, track moungting and surface mounting. The illumination can reach 370Lux at a distance of 50cm and 90Lux at 1m.

The stand pole is only 4.5 mm in diameter with standard length of 30 cm, and the height can be freely raised and lowered.

Sprite X0 of stand mounting can be flexibly rotated at 60°+ 90° in the vertical direction. Power 0.5W, the maximum illumination at 50 cm distance can reach 370Lux.

Multi-directional surface mounting, showing the fascinating charm of cultural relics at close range.

Power 0.5W, weighing only 20 grams, with the cut-out size of only 8 mm. It is suitable for surface mounting on the top, the countertop, and on the sides in various directions.

Sprite X0 of recessed mounting, 9°~23° zoomable via the pioneering front and rear focusing design.

Power 1W, with a maximum illumination of nearly 700Lux at 50cm distance, and 180Lux at 1m distance. Installation method of screw threaded and rear magnetic are optional.

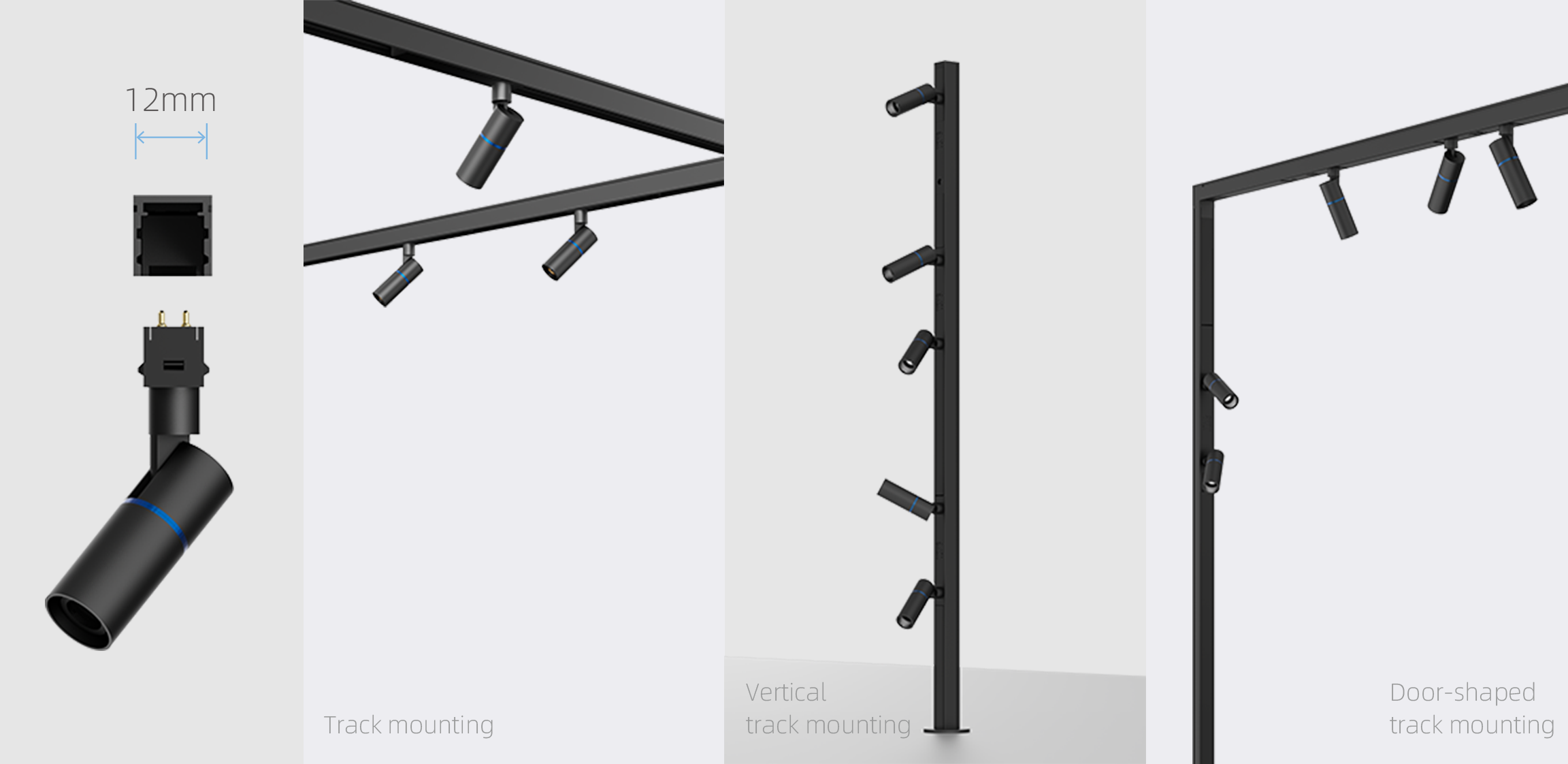

Power 0.5W of track mounting, with the slim track of only 12mm in width, highly customized, can be installed on vertical or door-shaped tracks.

With highly flexible track installation method, lighting direction of the lamps adjustable with 360° rotation, 90° tilt. Multi- directional projection, zoom 9° ~23° , Sprite X0 fully displays the three-dimensional effect and precious details of the cultural relics.

CRI can reach 97 with R9 up to 92.

The full color range ultra-high CRI improves the color sharpness and enhances the expression of details. The saturated and pure light vividly displays the cultural characteristics of exhibits and explores the true beauty of art.

45° refractor lens helps projecting light into every corner.

The recess mounted lamp is limited in its vertical upward rotation and cannot illuminate the top of tall exhibits, and the stand mounted lamps cannot illuminate the bottom of the exhibits in close range. The 45° refractor lens solves these problems perfectly.

An intelligent museum lighting system ensures artefact safety.

X0 supports intelligent lighting via DALI, Zigbee, and Bluetooth, allowing preset scenes and sensor-based control of intensity, duration, and exposure to protect light-sensitive artefacts.

Light Planning Guide

Sprite X0 Light Types and Beam Angle Distribution

Sprite X0 Installation Guide

Stand Mounting

Stand mounting installation with a vertically adjustable pole, allowing free height adjustment. The luminaire head offers 360° horizontal rotation and 135° vertical adjustment, enabling flexible multi-angle, three-dimensional lighting. It is suitable for display lighting applications in freestanding showcases.

Track Mounting

Track mounting utilizes a safe extra-low-voltage DC track, ensuring convenient, efficient, and secure installation, adjustment, and removal. It is well suited for display lighting applications in continuous showcases and wall-mounted showcases.

Surface Mounting

Surface mounting utilizes magnetic technology, making installation, adjustment, and removal exceptionally easy and convenient. It is suitable for display lighting applications in continuous showcases and wall-mounted showcases.

Recessed Mounting

Recessed mounting features an innovative structural design, allowing installation in panels as thin as 1 mm, while remaining easy, convenient, and secure. It is suitable for a variety of display lighting applications, including freestanding showcases and niche showcases.

Accessories and Product Customization

Lighting accessories

Honeycombs, color filters, 45° refractor lens, fully combinable.

Color temperature

3000K, 3500K, 4000K, optional 2700K, 5000K, etc.

Control mode

Dimmer, DALI, phase-cut dimming, Casambi, etc.

Sprite X0 Product Specification & Lighting Design Data Download

AKZU provides detailed product specifications and lighting design data packages. You can download and integrate them directly into your lighting design projects.
Please filter products using the options below and click the product code to download the relevant files.

Power

Beam angle

Loading data...

1. Color temperature: 3000K, 3500K, 4000K, optional 2700K, 5000K, etc.

2. The listed luminous flux data is standard specification, higher luminous flux can be customized upon request.

3. H(m) is the vertical distance from the light outlet to the illuminated surface, D(m) is the diameter of the light pattern at the corresponding illumination distance H, and E(lx) is the maximum illuminance value at the illumination distance H.

4. Control mode can be customized as phase-cut dimming, bluetooth dimming, and etc.

5. Surface mounting, track mounting, recessed mounting and stand mounting are available. The specific installation method is determined by the actual situation of the construction site.

6. For more information, please visit us at akzu.com.

Selected projects of Sprite X0 Museum Showcase Light

Sprite X0, with a diameter of 12mm only and Duolens zoom optics, may be the world's smallest zoomable Museum showcase light.
