Sprite X1

The sprites in museum showcases.

akzu,museum showcase lighting,musuem showcase light,museum display case lighting,cultural relic display lighting,exhibition cabinet lighting,embedded display case lighting,suspended showcase lighting,constant temperature display lighting,anti-glare display case lighting,low lux display lighting,display spectrum optimization,flicker-free display lighting,UV-blocking display lighting,heritage protective display lighting,display illuminance uniformity,smart dimming for showcase,AI showcase lighting,display color rendering optimization,closed display case lighting,glass showcase lighting,museum exhibition cabinet lighting

Sprite X1 features an ultra-compact Ø20 mm×38 mm design,
with 1 W power and an 8°–32° adjustable beam,
offering flexible lighting for all exhibit sizes.

In 2024, AKZU showcase lights have been fully upgraded with innovative Duolens zoom optics. The new Sprite X1 can achieve efficient zooming 8° ~32° , with even and smooth light in each focal length. It supports stand mounting, surface mounting, recessed mounting and track mounting. Especially for recessed mounting, the pioneering front and rear focusing design has been applied, creating a new era of showcase lighting.

Innovative Sprite X1 vividly presents the details of cultural relics. It is suitable for showcases with heights within 2m and illumination distances within 2m.

Suitable for independent showcases, floor showcases, flat showcases and niche showcases with a height within 2 meters.

Wattage: 1W, 1.5W, 2W
Input voltage: 3V/24V

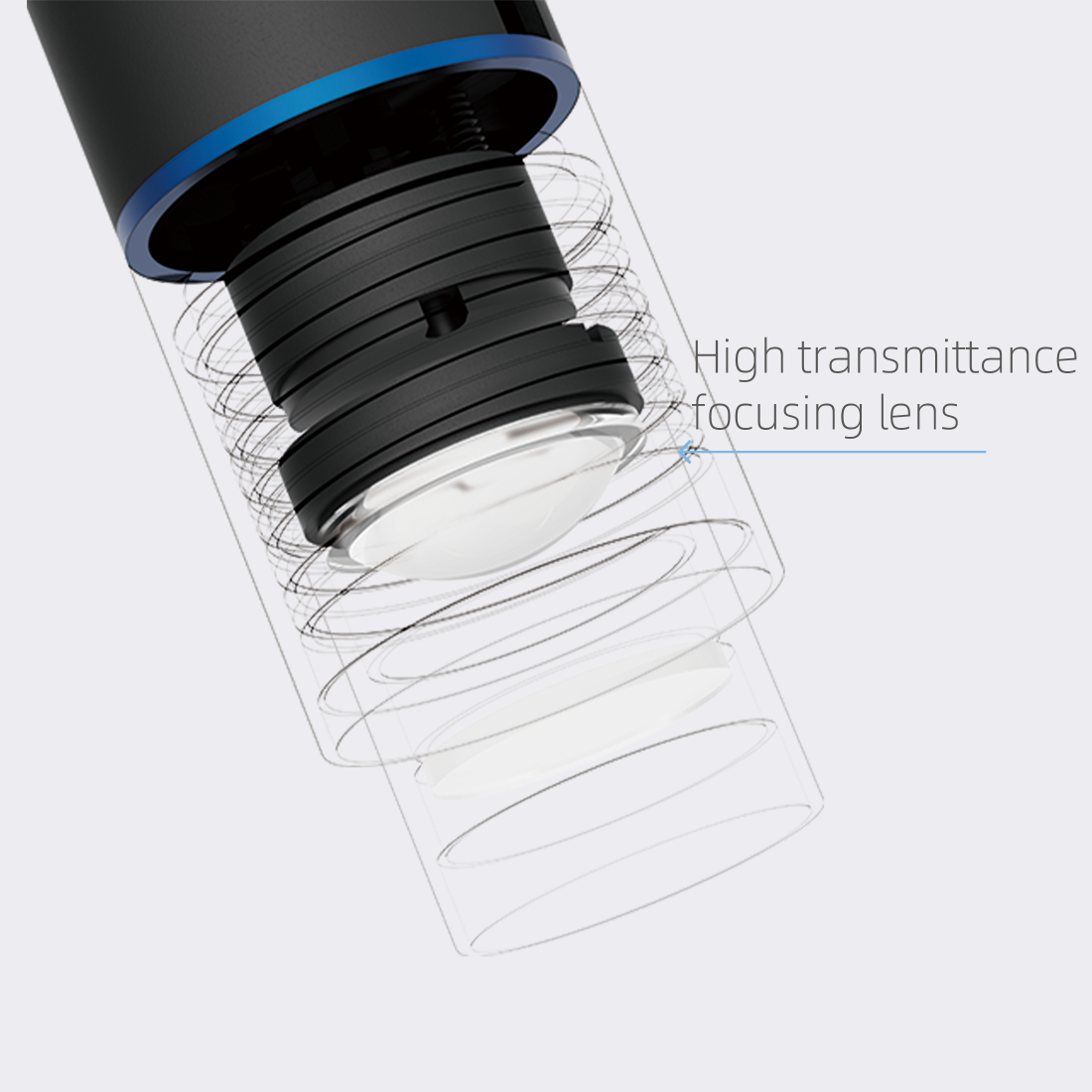

LED module: high-power LEDs, high transmittance focusing lens, LED life span over 50000 hours
Beam angle: zoom 8° ~32°
Color temperature: 3000K, 3500K, 4000K, optional 2700K, 5000K, etc.
Color rendering index: 95
Luminous flux*: 105lm~190lm
Installation method: stand mounting, surface mounting, recessed mounting, track mounting
Rotation & tilt: 360° rotation, 90° tilt (30° tilt for recessed mounting/150° tilt for stand mounting)
Adapter: single-circuit
Control mode: DALI, group dimming, phase-cut dimming, bluetooth dimming, and etc.
Brightness control range: 0-100%
Color: black, white
Housing: machining aluminum alloy, anodized

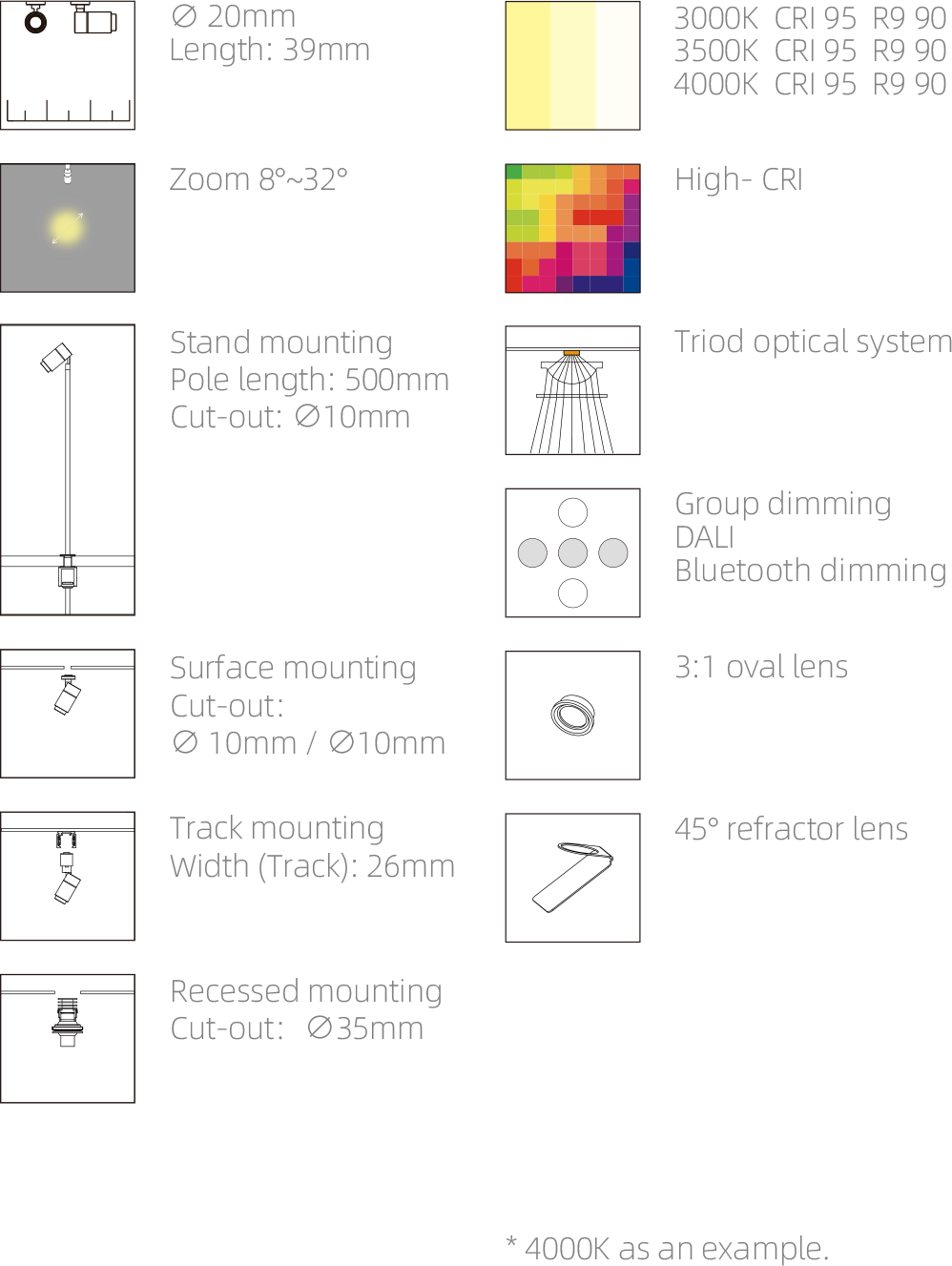

Sprite X1 Technical Specifications

Product construction size*

Powers & Light Distribution*

*Power refers to total system power; luminous flux data is based on LED module output.

Features

Innovative design, free adjustment on height

The classic stand mounted Sprite X1 can be lifted and lowered freely, and the vertical downward angle is upgraded from 45° to 60°, covering a wider range. Power 1W, zoom 8°~32°, the illumination is up to 1800Lux at 50cm and 450Lux at 1m.

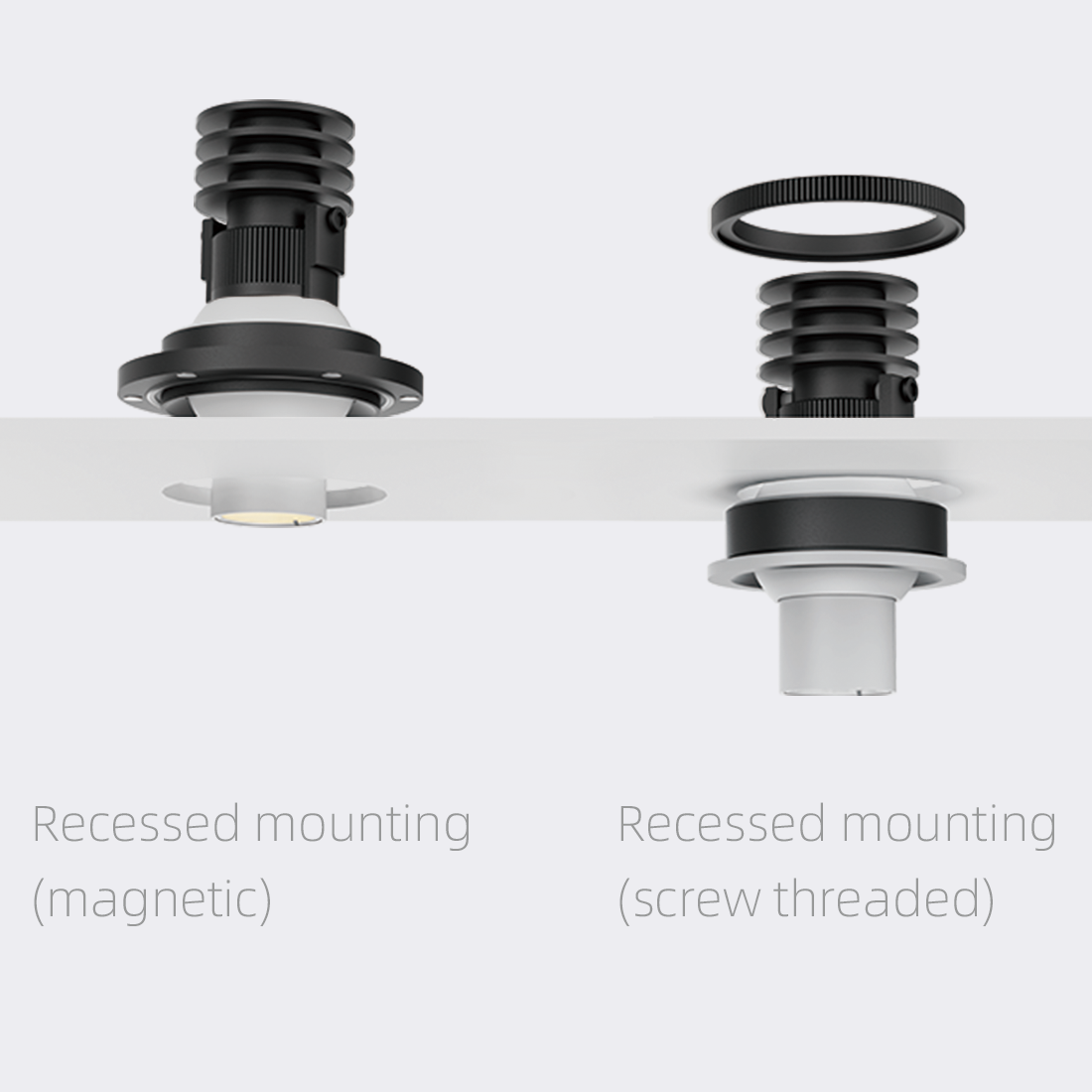

The pioneering front and rear focus design provides more convenient way for exhibition arrangement

The Sprite X1 of recessed mounting can either be threaded through holes or magnetically attached to the mounting surface. Power 2W, zoom 8°~32°, the illumination can reach 860Lux at 1m and 215Lux at 2m.

Multi-directional surface mounting, display cultural relics in more details.

Optional ceiling mounting, booth base mounting, and side mounting. Power 1W, zoom 8° ~32° , suitable for three-dimensional lighting of combined showcases with a height within 2m.

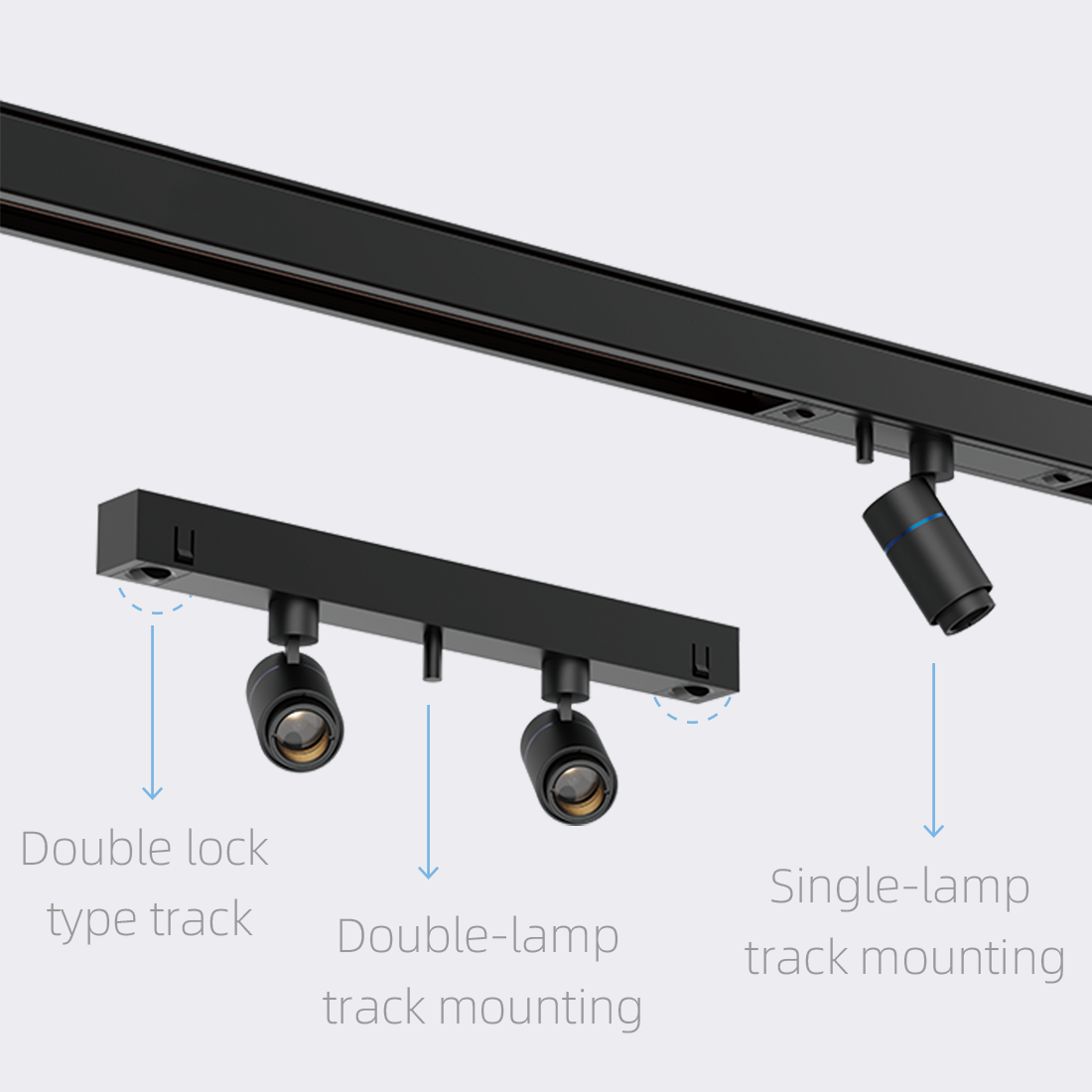

Double lock type track, more secure and reliable

Using 24V low-voltage track, single light with 1.5W, double lights with 3W, both come with single light dimming, zoom 8° ~32° , suitable for independent showcases, wall showcases, and central showcases within 3 meters.

Zoom 8° ~32° , the light color in each focal length is pure, saturated, soft and smooth.

Creatively applied Duolens zoom optics guarantees high light efficiency, smooth light distribution, avoids stray light and achieves perfect balance of light efficiency and light color quality.

CRI can reach 97 with R9 up to 92.

The full color range ultra-high CRI improves the color sharpness and enhances the expression of details. The saturated and pure light vividly displays the cultural characteristics of exhibits and explores the true beauty of art.

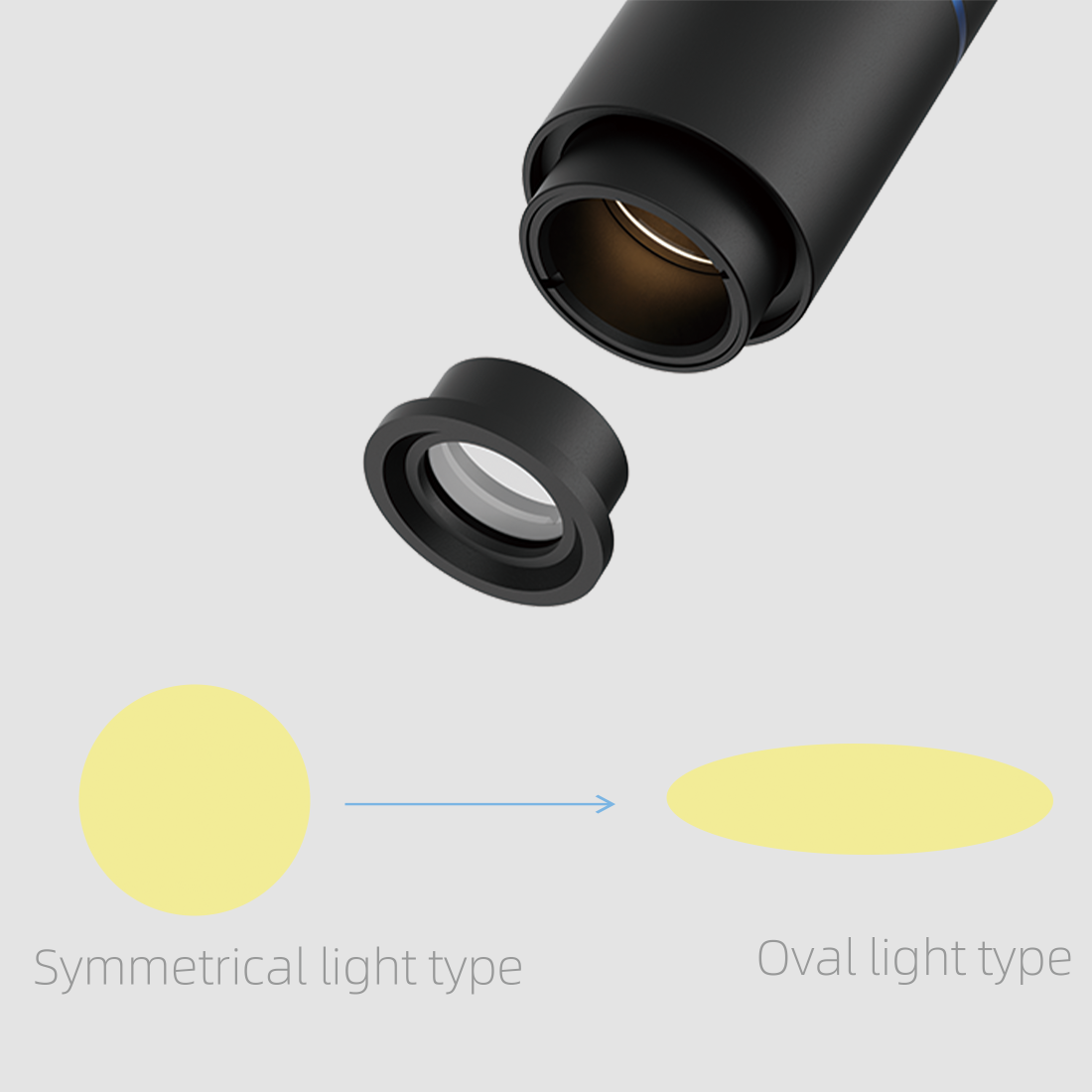

3:1 oval lens converts the zoom symmetrical light to oval light type in seconds.

The oval shape can appropriately display long exhibits or rectangular display areas. The oval ratio of each focal length is different. The maximum ratio is 3:1.

45° refractor lens helps projecting light into every corner.

The recess mounted lamp is limited in its vertical upward rotation and cannot illuminate the top of tall exhibits, and the stand mounted lamps cannot illuminate the bottom of the exhibits in close range. The 45° refractor lens solves these problems perfectly.

An intelligent museum lighting system ensures artefact safety.

X1 supports intelligent lighting via DALI, Zigbee, and Bluetooth, allowing preset scenes and sensor-based control of intensity, duration, and exposure to protect light-sensitive artefacts.

Light Planning Guide

Sprite X1 Light Types and Beam Angle Distribution

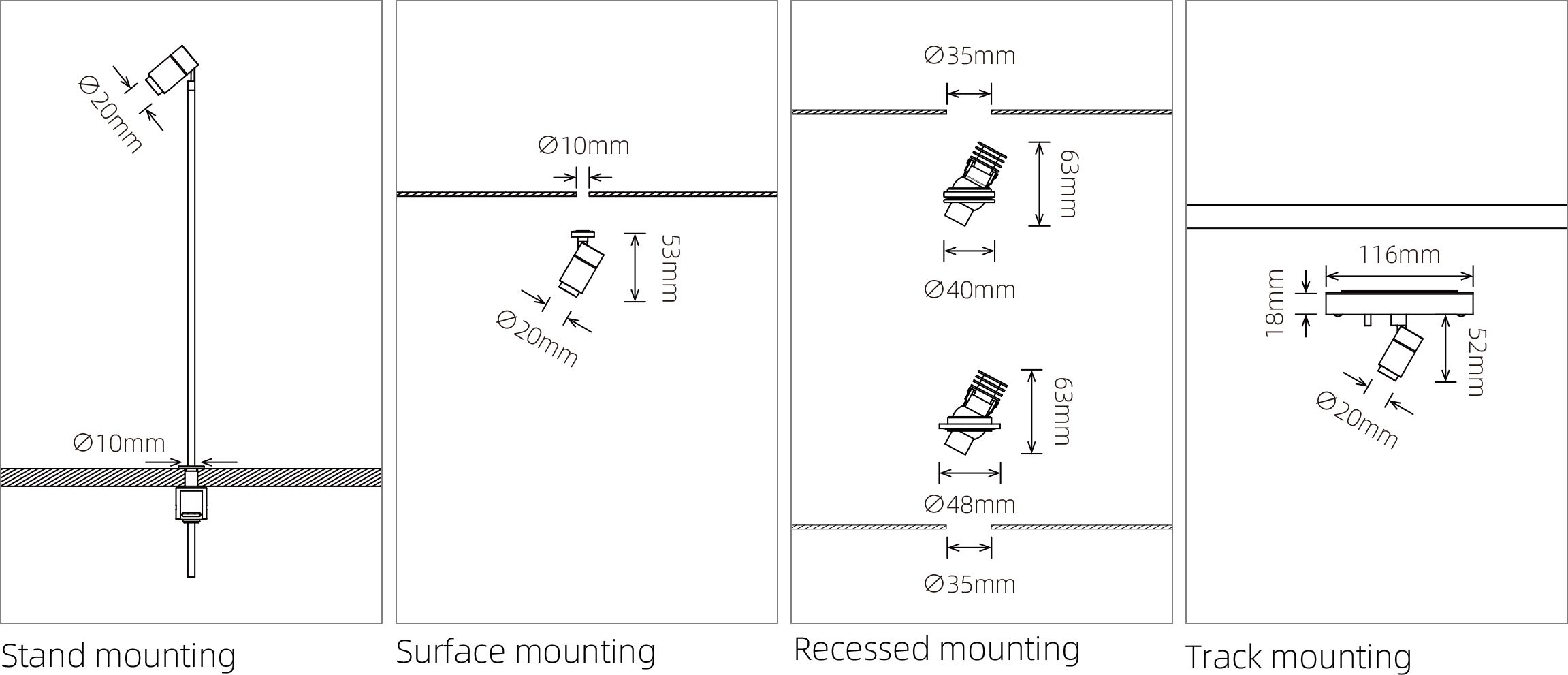

Sprite X1 Installation Guide

Stand Mounting

Stand mounting installation with a vertically adjustable pole, allowing free height adjustment. The luminaire head offers 360° horizontal rotation and 135° vertical adjustment, enabling flexible multi-angle, three-dimensional lighting. It is suitable for display lighting applications in freestanding showcases.

Track Mounting

Track mounting utilizes a safe extra-low-voltage DC track, ensuring convenient, efficient, and secure installation, adjustment, and removal. It is well suited for display lighting applications in continuous showcases and wall-mounted showcases.

Surface Mounting

Surface mounting utilizes magnetic technology, making installation, adjustment, and removal exceptionally easy and convenient. It is suitable for display lighting applications in continuous showcases and wall-mounted showcases.

Recessed Mounting

Recessed mounting features an innovative structural design, allowing installation in panels as thin as 1 mm, while remaining easy, convenient, and secure. It is suitable for a variety of display lighting applications, including freestanding showcases and niche showcases.

Accessories and Product Customization

Lighting accessories

Honeycombs, color filters, 45° refractor lens, fully combinable.

Color temperature

3000K, 3500K, 4000K, optional 2700K, 5000K, etc.

Control mode

Dimmer, DALI, phase-cut dimming, Casambi, etc.

Sprite X1 Product Specification & Lighting Design Data Download

AKZU provides detailed product specifications and lighting design data packages. You can download and integrate them directly into your lighting design projects.
Please filter products using the options below and click the product code to download the relevant files.

Power

Beam angle

Loading data...

1. Color temperature: 3000K, 3500K, 4000K, optional 2700K, 5000K, etc.

2. The listed luminous flux data is standard specification, higher luminous flux can be customized upon request.

3. The listed luminous flux data is typical for reference only. H(m) = vertical distance from the light outlet of the lamp to the illuminated surface, D(m) = light pattern diameter at distance H, E(lx) = maximum illuminance at distance H.

4. Control mode can be customized as phase-cut dimming, bluetooth dimming, and etc.

5. Surface mounting, track mounting, recessed mounting and stand mounting are available. The specific installation method is determined by the actual situation of the construction site.

6. For more information, please visit us at akzu.com.
