Sprite X2

History and art in museum
wall showcases are vividly reborn!

akzu,museum showcase lighting,musuem showcase light,museum display case lighting,cultural relic display lighting,exhibition cabinet lighting,embedded display case lighting,suspended showcase lighting,constant temperature display lighting,anti-glare display case lighting,low lux display lighting,display spectrum optimization,flicker-free display lighting,UV-blocking display lighting,heritage protective display lighting,display illuminance uniformity,smart dimming for showcase,AI showcase lighting,display color rendering optimization,closed display case lighting,glass showcase lighting,museum exhibition cabinet lighting

Sprite X2 features new dual-lens zoom optics with a 6°–50° range,
a compact Ø40 mm design with 0–100% dimming,
delivering flexible, high-impact lighting.

The Sprite X2 with the newly upgraded Duolens zoom optics, zoom 6° ~50° , only 4cm in diameter, 0-100% dimming. Power 2W and 4W optional. The 2W model can reach 700Lux at 2m, and 170Lux at 4m; the 4W model has an illumination of up to 1060Lux at 2m, and 260Lux at 4m.

Sprite X2 has saturated and pure light colors, a wide zoom range, and high efficiency. It is suitable for lighting large independent showcases, high showcases with a height of less than 4m. It can also be installed on the base and side surfaces of medium and large exhibits stands, providing multi-directional lighting from the bottom and sides. Suitable for independent showcases, tall showcases and flat showcases with a height of 2m-4m.

Wattage: 2W, 3W, 5W
Input voltage: 3V/24V
LED module: high-power LEDs, high transmittance focusing lens and collimating Dao lens, LED life span over 50000 hours
Beam angle: zoom 6° ~50° , Spot 16° , Flood 26° , 47° , 54° x24° , 24° x54° and Wallwash
Color temperature: 3000K, 3500K, 4000K, optional 2700K, 5000K, etc.
Color rendering index: 95
Luminous flux*: 190lm~285lm
Installation method: surface mounting, recessed mounting, track mounting
Rotation & tilt: 360° rotation, 90° tilt (60° tilt for recessed mounting)
Adapter: single-circuit
Control mode: DALI, group dimming, with dimmer, phase-cut dimming, bluetooth dimming, and etc.
Brightness control range: 0-100%
Interchangeable principal lens: Among 16°, 26°,36°, 47°, 54°x14°, 14°x54°, 54°x24°, 24°x54°, and wallwash
Color: black, white
Housing: machining aluminum alloy, anodized

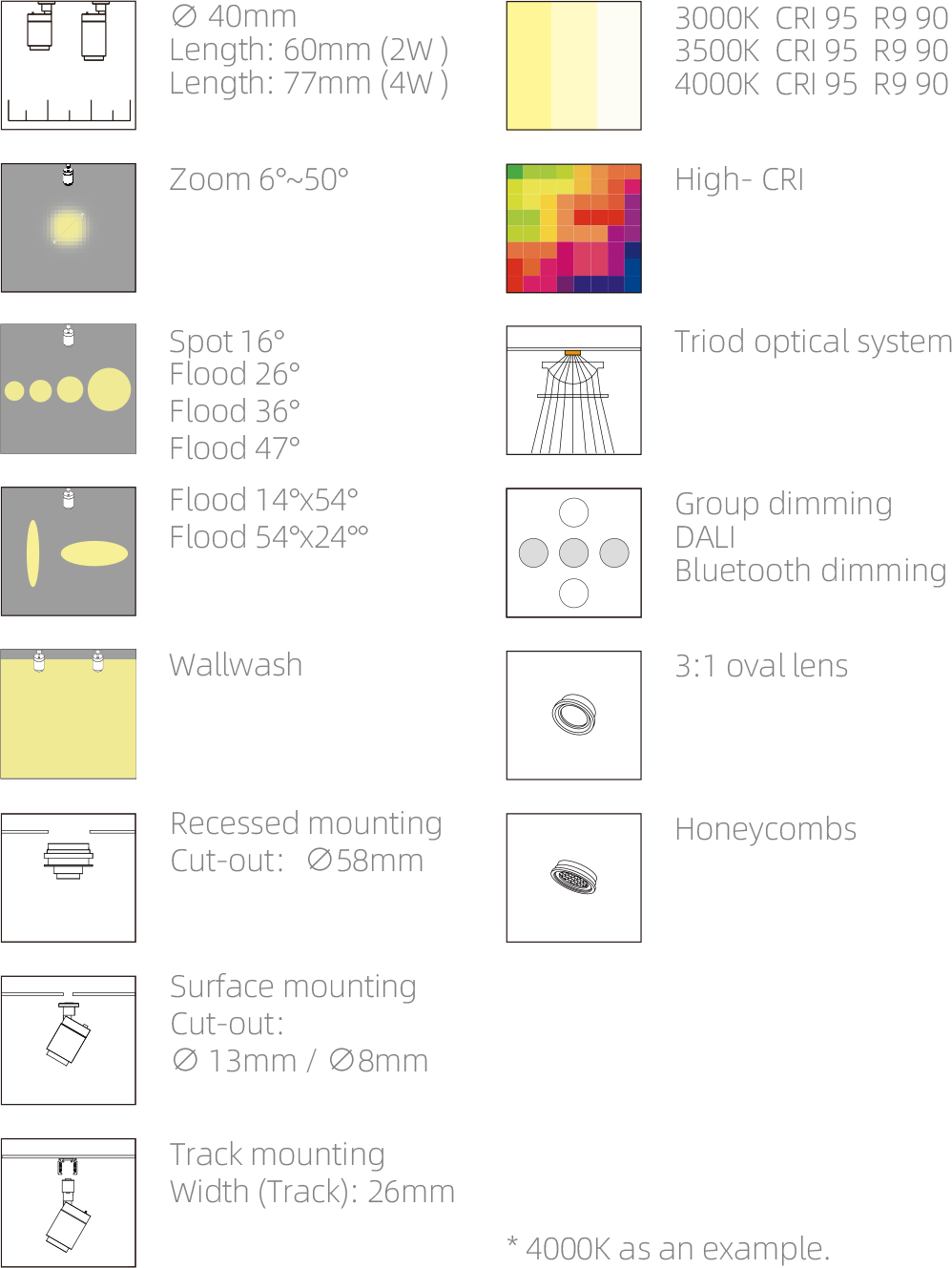

Sprite X2 Technical Specifications

Product construction size

Powers & Light Distribution*

*Power refers to total system power; luminous flux data is based on LED module output.

Features

Zoom 6° ~50° , the light color in each focal segment is pure, saturated, soft and smooth.

AKZU creatively applies Duolens zoom optics, guarantees high light efficiency, smooth light distribution, avoids stray light and achieves the perfect balance of light efficiency and light color quality.

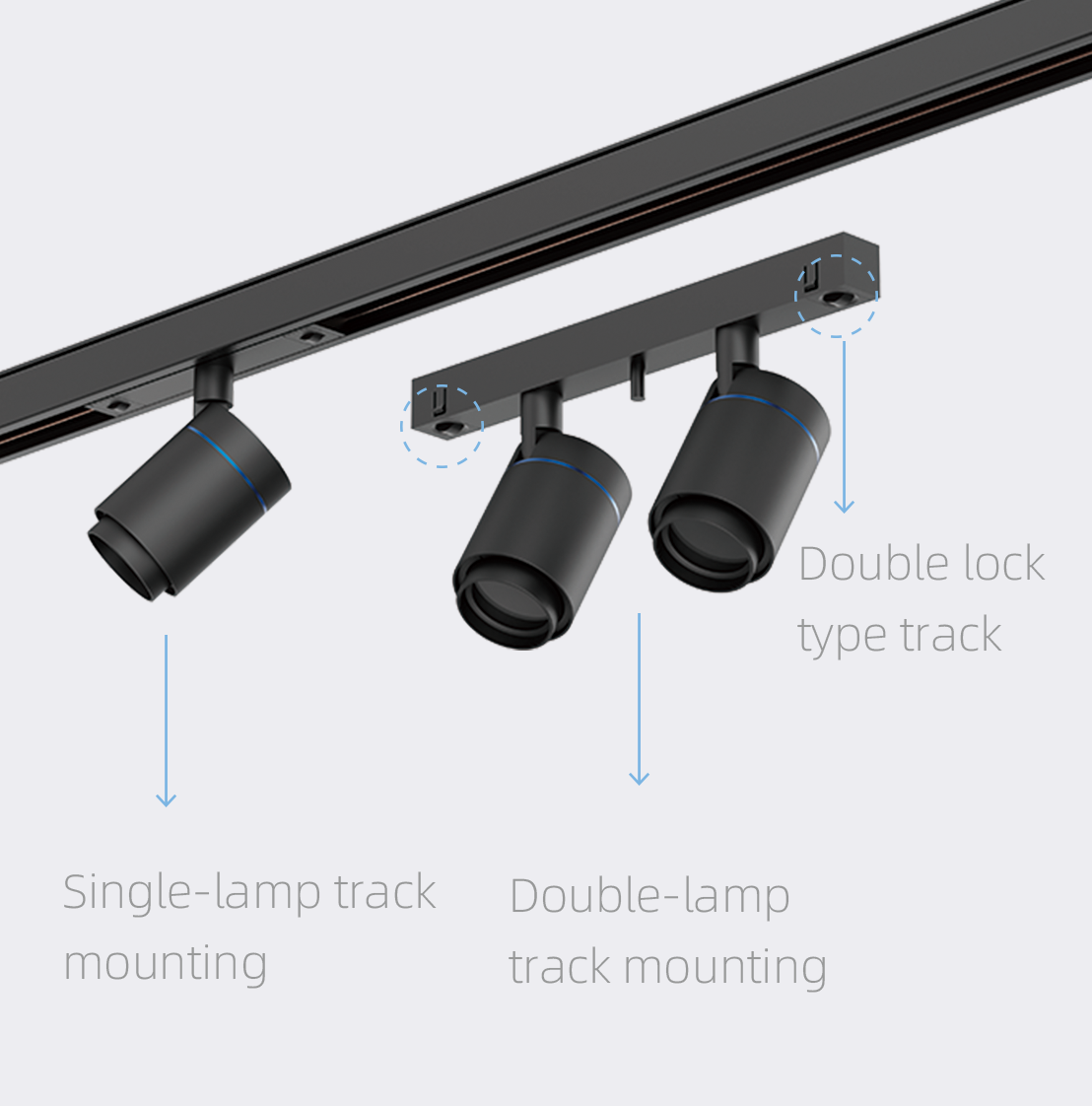

Double lock type adapter, more secure and reliable

Using 24V low-voltage track, single light of 3W and 5W, with dimmer control; double lights of 6W and 10W, simultaneous dimming. Zoom 6° ~50° , suitable for independent showcases, wall showcases, and central showcases with a height less than 4 meters.

Recess mounted X2, 60° tilt, better solution for bigger size exhibits.

Generally, the recess mounted lamp can only rotate 30° vertically and cannot project light to the upper part of the exhibits. X2 can rotate up to 60° and the projection range can fully cover the exhibits.

Multi-directional surface mounting, display cultural relics in more details.

Optional ceiling mounting, booth base mounting, and side mounting. Power 2W ,3W and 5W, zoom 6°~50°, suitable for three-dimensional lighting of combined showcases.

Sprite X2 4W model, suitable for up to 5m high showcases.

Innovative Duolens zoom optics, efficient wide-area zoom, each focal length has saturated light color. At 3000K color temperature with direct spot 6° , the illumination is up to 470Lux at 3m, 260Lux at 4m, and 170Lux at 5m.

Each installation method is sealed to protect the constant temperature and humidity environment inside the showcases.

Surface mounting, recessed mounting and track mounting are all sealed installation, ensuring the constant environment inside the showcases.

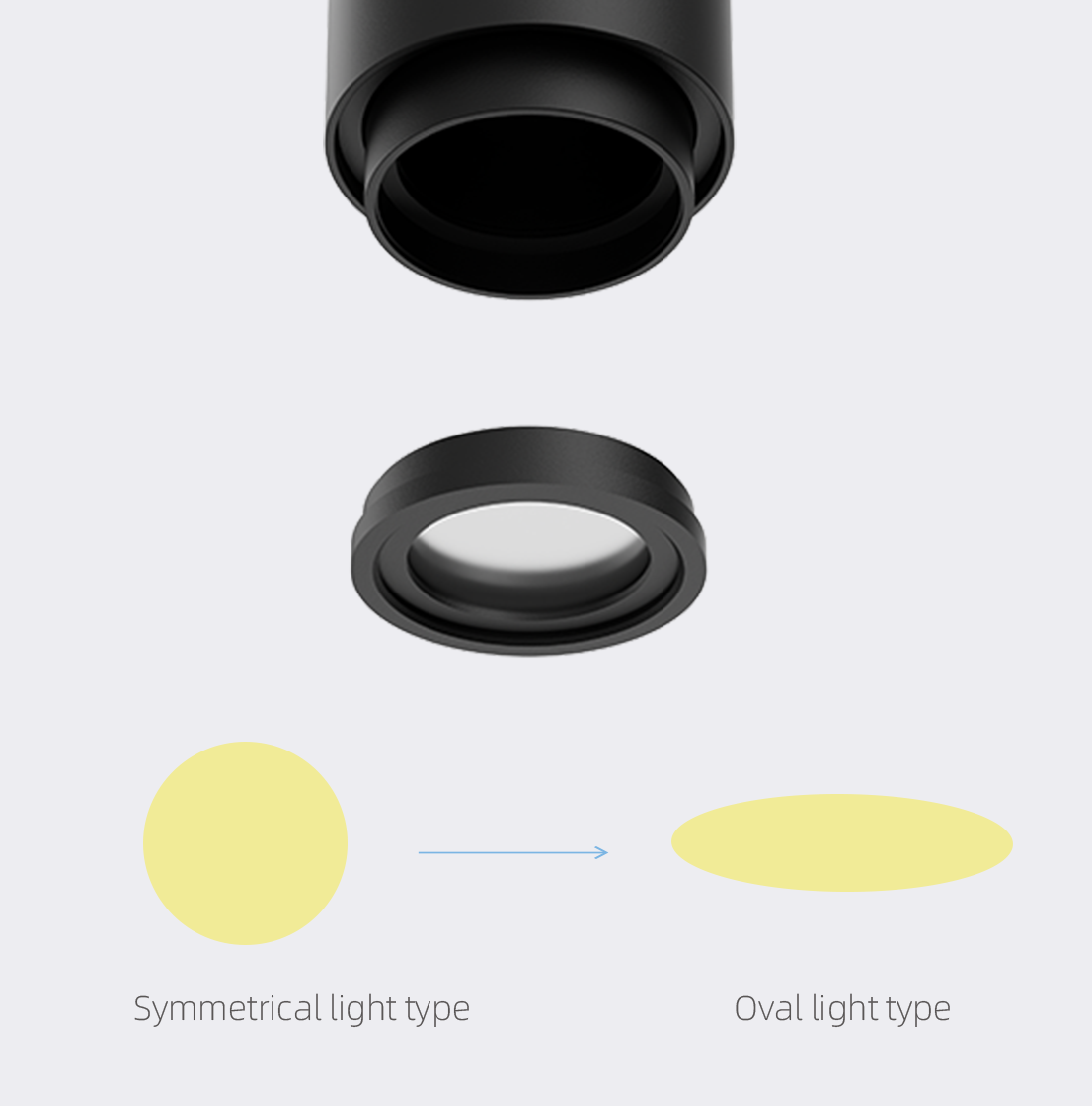

3:1 oval lens converts the zoom symmetrical light to oval light type in seconds.

The oval shape can appropriately display long exhibits or rectangular display areas. The oval ratio of each focal length is different. The maximum ratio is 3:1.

CRI can reach 97 with R9 up to 92.

The full color range ultra-high CRI improves the color sharpness and enhances the expression of details. The saturated and pure light vividly displays the cultural characteristics of exhibits and explores the true beauty of art.

An intelligent museum lighting system ensures artefact safety.

X2 supports intelligent lighting via DALI, Zigbee, and Bluetooth, allowing preset scenes and sensor-based control of intensity, duration, and exposure to protect light-sensitive artefacts.

Light Planning Guide

Sprite X2 Light Types and Beam Angle Distribution

Sprite X2 Installation Guide

Track Mounting

Track mounting utilizes a safe extra-low-voltage DC track, ensuring convenient, efficient, and secure installation, adjustment, and removal. It is well suited for display lighting applications in continuous showcases and wall-mounted showcases.

Surface Mounting

Surface mounting utilizes magnetic technology, making installation, adjustment, and removal exceptionally easy and convenient. It is suitable for display lighting applications in continuous showcases and wall-mounted showcases.

Recessed Mounting

Recessed mounting features an innovative structural design, allowing installation in panels as thin as 1 mm, while remaining easy, convenient, and secure. It is suitable for a variety of display lighting applications, including freestanding showcases and niche showcases.

Accessories and Product Customization

Accessories

Honeycombs, 3:1 stretchable filter, giving curators full creative control.

Color temperature

3000K, 3500K, 4000K, optional 2700K, 5000K, etc.

Control mode

Dimmer, DALI, phase-cut dimming, Casambi, etc.

Sprite X2 Product Specification & Lighting Design Data Download

AKZU provides detailed product specifications and lighting design data packages. You can download and integrate them directly into your lighting design projects.
Please filter products using the options below and click the product code to download the relevant files.

Power

Beam angle

Loading data...

1. Color temperature: 3000K, 3500K, 4000K, optional 2700K, 5000K, etc.

2. The listed luminous flux data is standard specification, higher luminous flux can be customized upon request.

3. The listed luminous flux data is typical for reference only. H(m) = vertical distance from the light outlet of the lamp to the illuminated surface, D(m) = light pattern diameter at distance H, E(lx) = maximum illuminance at distance H.

4. Control mode can be customized as phase-cut dimming, bluetooth dimming, and etc.

5. Surface mounting, track mounting and recessed mounting are available. The specific installation method is determined by the actual situation of the construction site.

6. For more information, please visit us at akzu.com.

Selected projects of Sprite X2 Museum Showcase Light

Sprite X2 features new dual-lens zoom optics with a 6°–50° range, a compact Ø40 mm design with 0–100% dimming, delivering flexible, high-impact lighting.
