Sprite X3

Precision lighting for tall
& narrow showcase spaces.

akzu,museum showcase lighting,musuem showcase light,museum display case lighting,cultural relic display lighting,exhibition cabinet lighting,embedded display case lighting,suspended showcase lighting,constant temperature display lighting,anti-glare display case lighting,low lux display lighting,display spectrum optimization,flicker-free display lighting,UV-blocking display lighting,heritage protective display lighting,display illuminance uniformity,smart dimming for showcase,AI showcase lighting,display color rendering optimization,closed display case lighting,glass showcase lighting,museum exhibition cabinet lighting

Sprite X3 features surface magnetic and track mounting,
enabling flexible lighting for tall and continuous showcases,
designed for museums and art galleries.

Sprite X3 adheres to the AKZU Triod high light efficiency control concept, with power of 3W and 7.5W, the illumination is up to with power of 2W 3W, 6W and 7.5W, the illumination is up to 930Lux at 3m, and 330Lux at 5m. Six light types with beam angles from narrow spot of 6°, 12°, 16°, to flood 26°, 36°, 47°，54°×14°, 14°×54°, 54°×24°, 24°×54°, and wallwash. structure of lens allows the light type to be converted instantly.

The magnetic surface mounting and track mounting make the lighting design of museum showcases more comfortable. The precise lighting interprets the fascinating charm of precious history and art.

Suitable for independent showcases, tall showcases and flat showcases with a height of 3m-5m.

Wattage: 2W, 3W, 6W, 7.5W
Input voltage: 3V/24V
LED module: high-power LEDs, collimating Viva, Trio 2 lens, LED life span over 50000 hours
Beam angle: Spot 6°, 12°, 16°, Flood 26°, 36°, 47°，54°×14°, 14°×54°, 54°×24°, 24°×54°, and wallwash
Color temperature: 3000K, 3500K, 4000K, optional 2700K, 5000K, etc.
Color rendering index: 95
Luminous flux*: 190lm~570lm
Installation method: surface mounting, track mounting
Rotation & tilt: 360° rotation, 90° tilt
Adapter: single-circuit, adapt to various types of tracks
Control mode: DALI, with dimmer, phase-cut dimming, bluetooth dimming, and etc.
Brightness control range: 0-100%
Interchangeable principal lens: Between Spot 6°and 12°, or among 16°, 26°, 36°, 47°，54°×14°, 14°×54°, 54°×24°, 24°×54°, and wallwash.
Color: black, white
Housing: machining aluminum alloy, anodized

Sprite X3 Technical Specifications

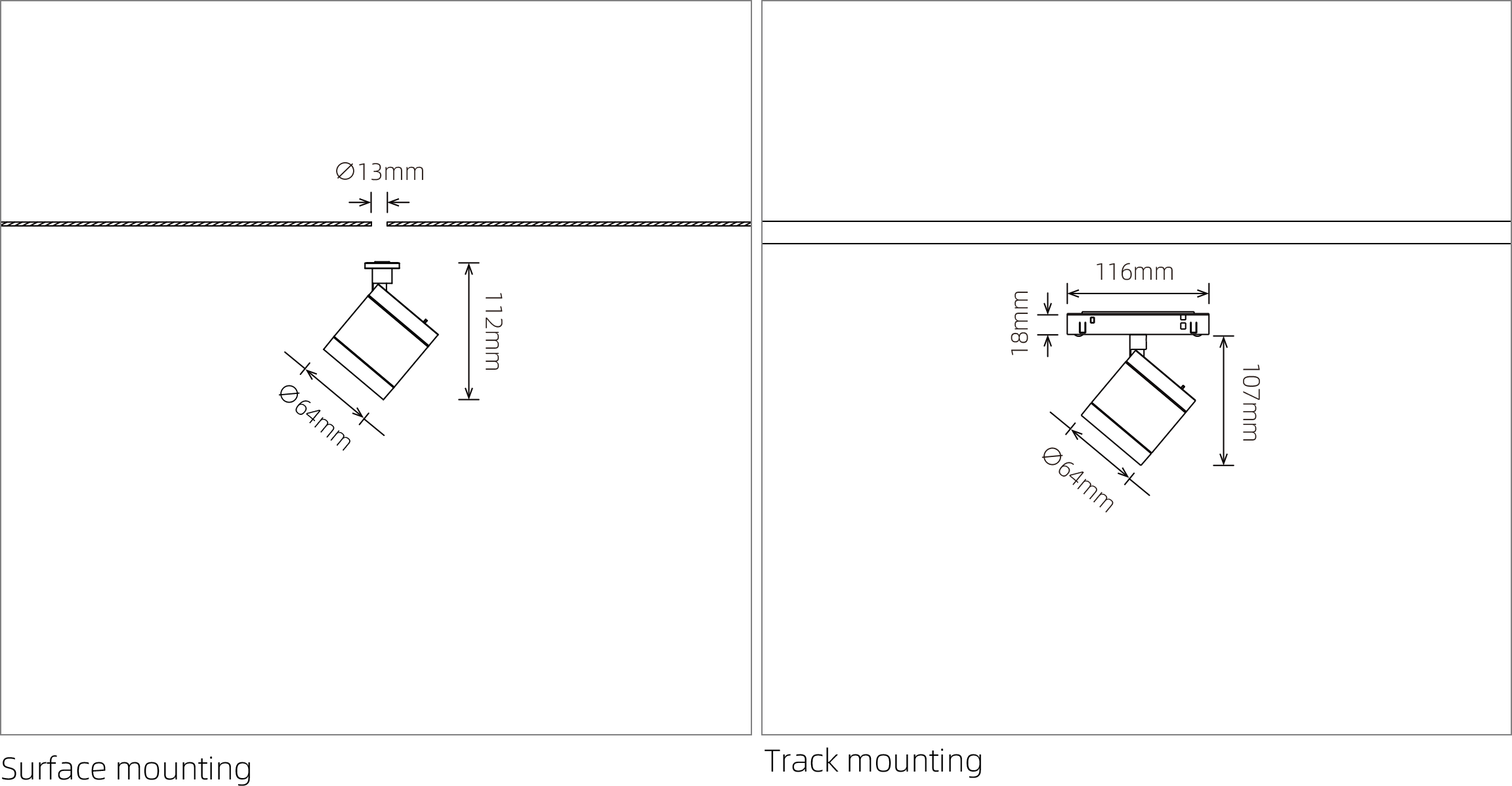

Product construction size

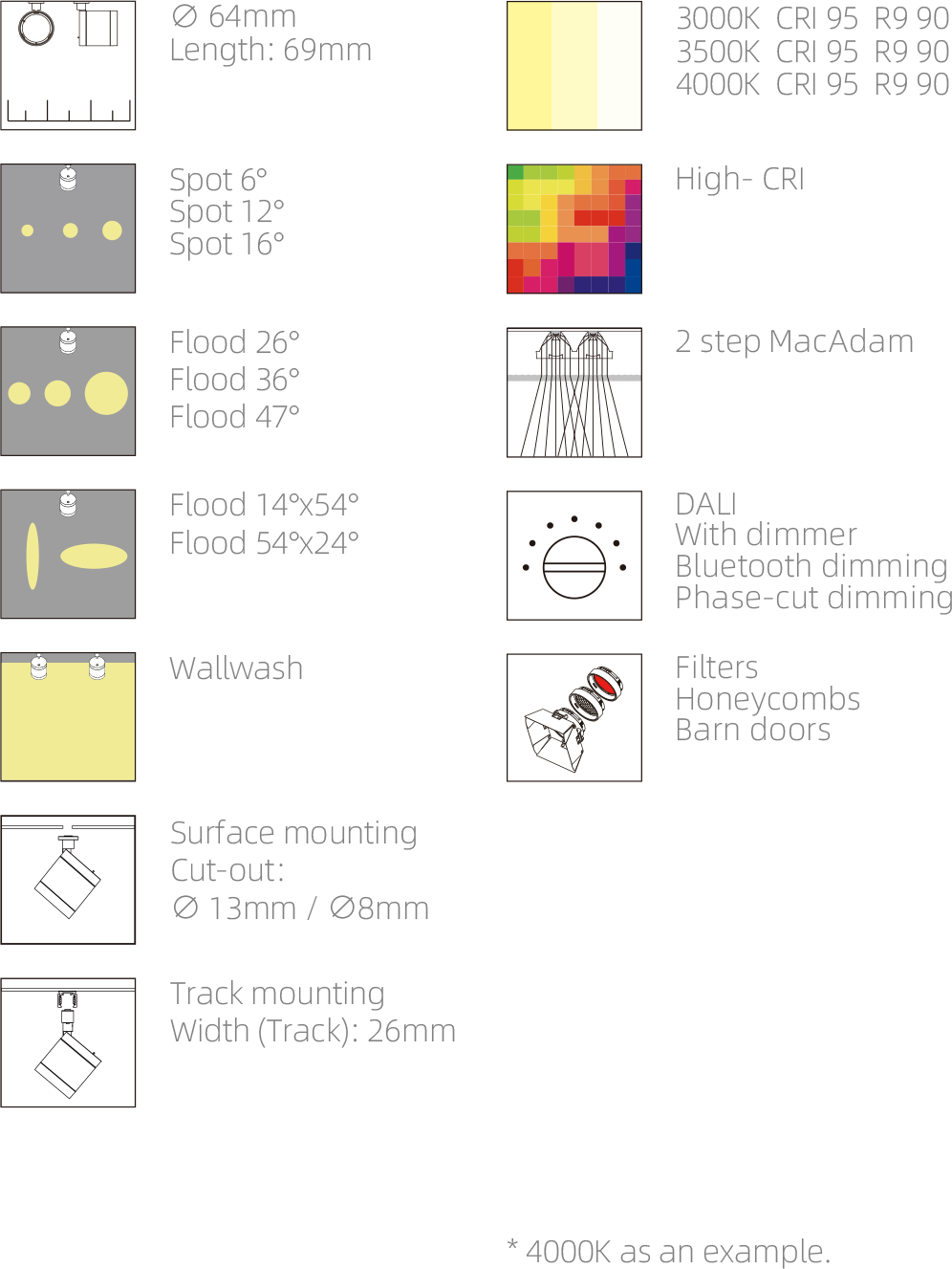

Powers & Light Distribution*

*Power refers to total system power; luminous flux data is based on LED module output.

Features

"One light for multiple applications", enabling instant conversion between various beam angles.

The interchangeable lens structure makes it easy to change the light types without any tools. It not only solves the problem of frequent replacement of lamps when changing exhibitions, but also saves a lot of expenses on lamp reserves.

Trio 2, the 2nd generation collimating lens

The improved 3-in- 1 high-power LED collimated lens reduces the size by 5% and increases the efficiency by 11%. Collocated with Triod optical system, the light distribution is finely controlled and the visual experience is natural and comfortable.

Double lock type adapter, more secure and reliable

Using 24V low-voltage track, power of 2W and 6W, with dimmer control, suitable for independent showcases and wall showcases with a height less than 5 meters.

Multi-directional surface mounting, display cultural relics in more details.

Ceiling mounting, booth base mounting, and side mounting are available. Power 3W and 7.5W, suitable for three-dimensional lighting of combined showcases.

Matte surface treatment, reducing diffuse reflection

Sprite series museum showcase lights are treated by fine hard anodic oxidation. The very fine matte surface particles give Sprite a compacted texture, avoid the diffuse reflection of environmental light, and greatly improve the heat dissipation effect.

X3 for tall cabinet, suitable for precise lighting in high and narrow spaces.

With 6 light types, X3 is suitable for showcases with a height of less than 5m. The magnetic interchangeable structure allows the light type to be converted instantly. Optional surface mounting and track mounting make the lighting design more comfortable.

CRI can reach 97 with R9 up to 92.

The full color range ultra-high CRI improves the color sharpness and enhances the expression of details. The saturated and pure light vividly displays the cultural characteristics of exhibits and explores the true beauty of art.

An intelligent museum lighting system ensures artefact safety.

X3 supports intelligent lighting via DALI, Zigbee, and Bluetooth, allowing preset scenes and sensor-based control of intensity, duration, and exposure to protect light-sensitive artefacts.

Light Planning Guide

Sprite X3 Light Types and Beam Angle Distribution

Sprite X3 Installation Guide

Track Mounting

Track mounting utilizes a safe extra-low-voltage DC track, ensuring convenient, efficient, and secure installation, adjustment, and removal. It is well suited for display lighting applications in continuous showcases and wall-mounted showcases.

Surface Mounting

Surface mounting utilizes magnetic technology, making installation, adjustment, and removal exceptionally easy and convenient. It is suitable for display lighting applications in continuous showcases and wall-mounted showcases.

Accessories and Product Customization

Lighting accessories

Honeycombs, barn doors, filters.

Color temperature

3000K, 3500K, 4000K, optional 2700K, 5000K, etc.

Control mode

Dimmer, DALI, phase-cut dimming, Casambi, etc.

Sprite X3 Product Specification & Lighting Design Data Download

AKZU provides detailed product specifications and lighting design data packages. You can download and integrate them directly into your lighting design projects.
Please filter products using the options below and click the product code to download the relevant files.

Power

Beam angle

Loading data...

1. Color temperature: 3000K, 3500K, 4000K, optional 2700K, 5000K, etc.

2. The listed luminous flux data is standard specification, higher luminous flux can be customized upon request.

3. The listed luminous flux data is typical for reference only. H(m) = vertical distance from the light outlet of the lamp to the illuminated surface, D(m) = light pattern diameter at distance H, E(lx) = maximum illuminance at distance H.

4. Light type conversion can be realized between Spot 6° and 12° , or among 16° , 26° ,36° , 47° , 54° x24° , 24° x54° and Wallwash.

5. Control mode can be customized as phase-cut dimming, bluetooth dimming, and etc.

6. Surface mounting and track mounting are available. The specific installation method is determined by the actual situation of the construction site.

7. For more information, please visit us at akzu.com.

Selected projects of Sprite X3 Museum Showcase Light

Sprite X3 features surface magnetic and track mounting, enabling flexible lighting for tall and continuous showcases, designed for museums and art galleries.
