Sprite X11

"Zero glare", 1cm in diameter, endless lighting
for museum table showcases.

Sprite X11, "zero glare", 1cm in diameter,

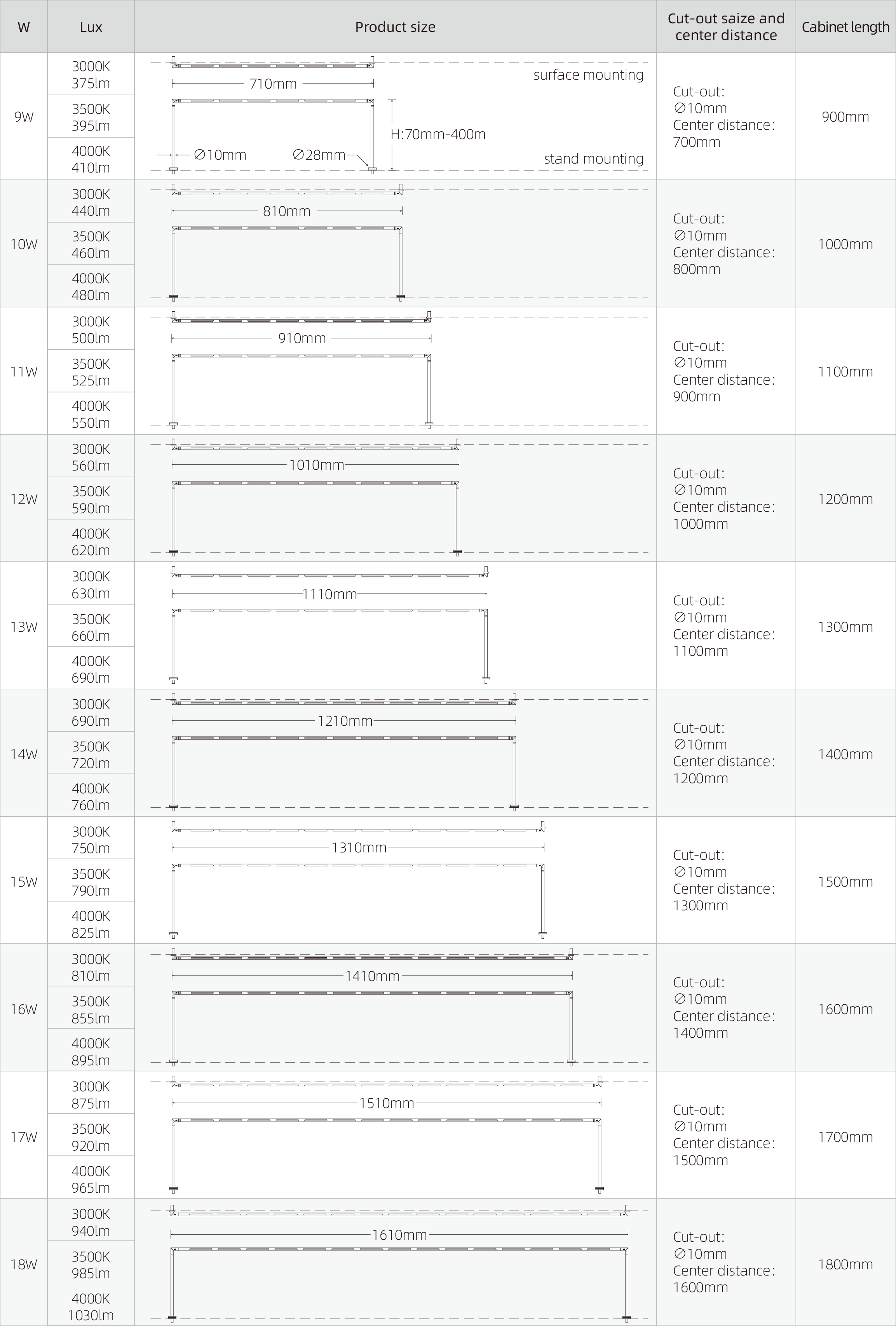

10 standard lengths ranging from 710mm to 1610mm.
With the T-type bridge structure, it can be seamlessly adapted to
the lighting for table showcases up to 100 meters long.

AKZU Sprite X11 table showcase light is specially designed for perfect "zero glare" lighting of large and medium-sized showcases in museums and art galleries. It has an extremely slim lamp body of 1 cm in diameter, uniform, pure and soft light color, and can adjust the light angle at will.

It comes in 10 specifications and can be seamlessly adapted to a variety of table showcase lengths with a T-shaped bridge structure, making the design and implementation of museum table showcase lighting simple and efficient. It is not only suitable for the display of large flat exhibits, but also suitable for the display design of exhibits with small volume, large number and high arrangement density in table showcases.

Suitable for table showcases and niche showcases.

Wattage: 9W~18W
LED module: high-power LEDs, LED life span over 50000 hours
Beam angle: linear light type (tablewash)
Color temperature: 3000K, 3500K, 4000K, optional 2700K, 5000K, etc.
Color rendering index: 95
Luminous flux*: 410lm~1030lm
Installation method: stand mounting, surface mounting
Rotation & tilt: 360° (vertically)
Control mode: DALI, group dimming, phase-cut dimming, bluetooth dimming, and etc.
Brightness control range: 0-100%
Color: black, white
Housing: machining aluminum alloy, anodized

Sprite X11 Technical Specifications

Powers & Light Distribution*

*Power refers to total system power; luminous flux data is based on LED module output.

Features

1cm only in diameter, 360° rotatable and adjustable both for the light projection direction and shading shield, "zero glare" for museum table showcases lighting.

Extremely slender lamp body with diameter of only 1cm, Sprite X11 may be the slimmest museum showcase light in the world, can well hide in the exhibition showcase space. The thin and light-absorbing shield can adjust freely according to the viewing angle of the audience, realize "zero glare", uniform and transparent lighting for museum display cabinets and table cabinets改为museum showcases.

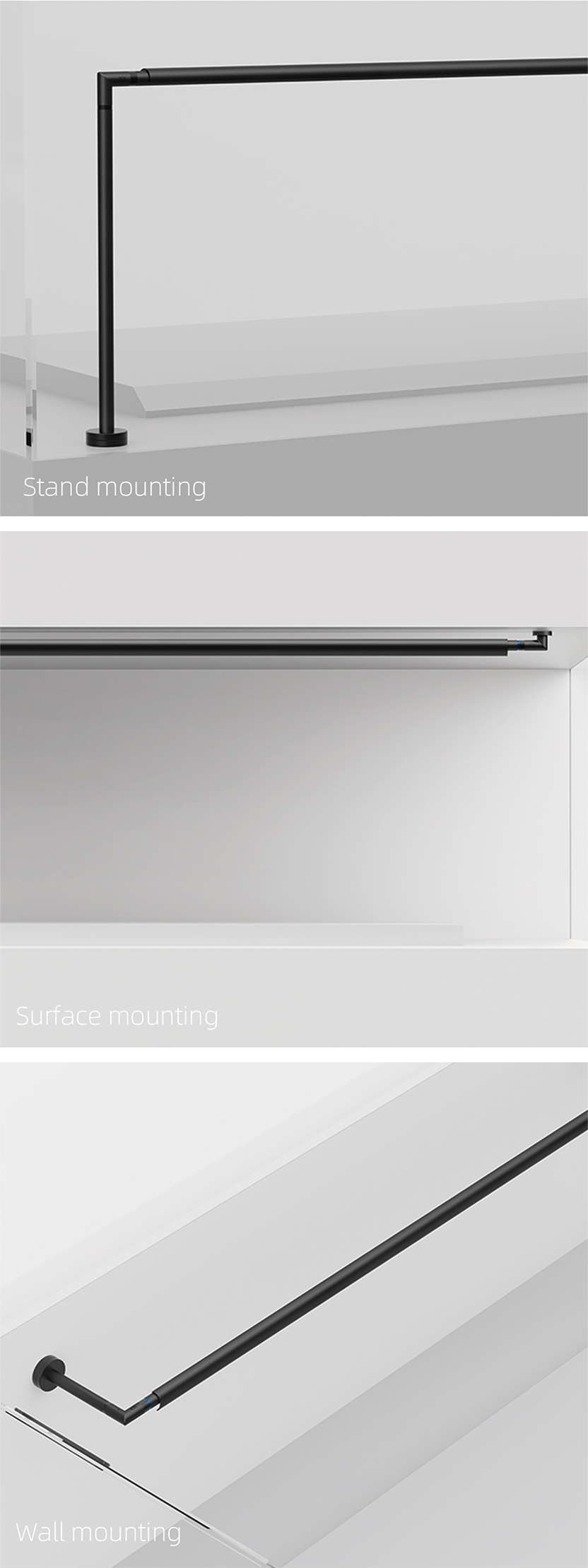

Customized pole height within 70- 400mm, supporting both side and top surface mounting.

In addition to the standardized stand mounting, side and top surface mounting, and even fixed installation on the opening and closing structure of the display showcase can be achieved by using customized structure components.

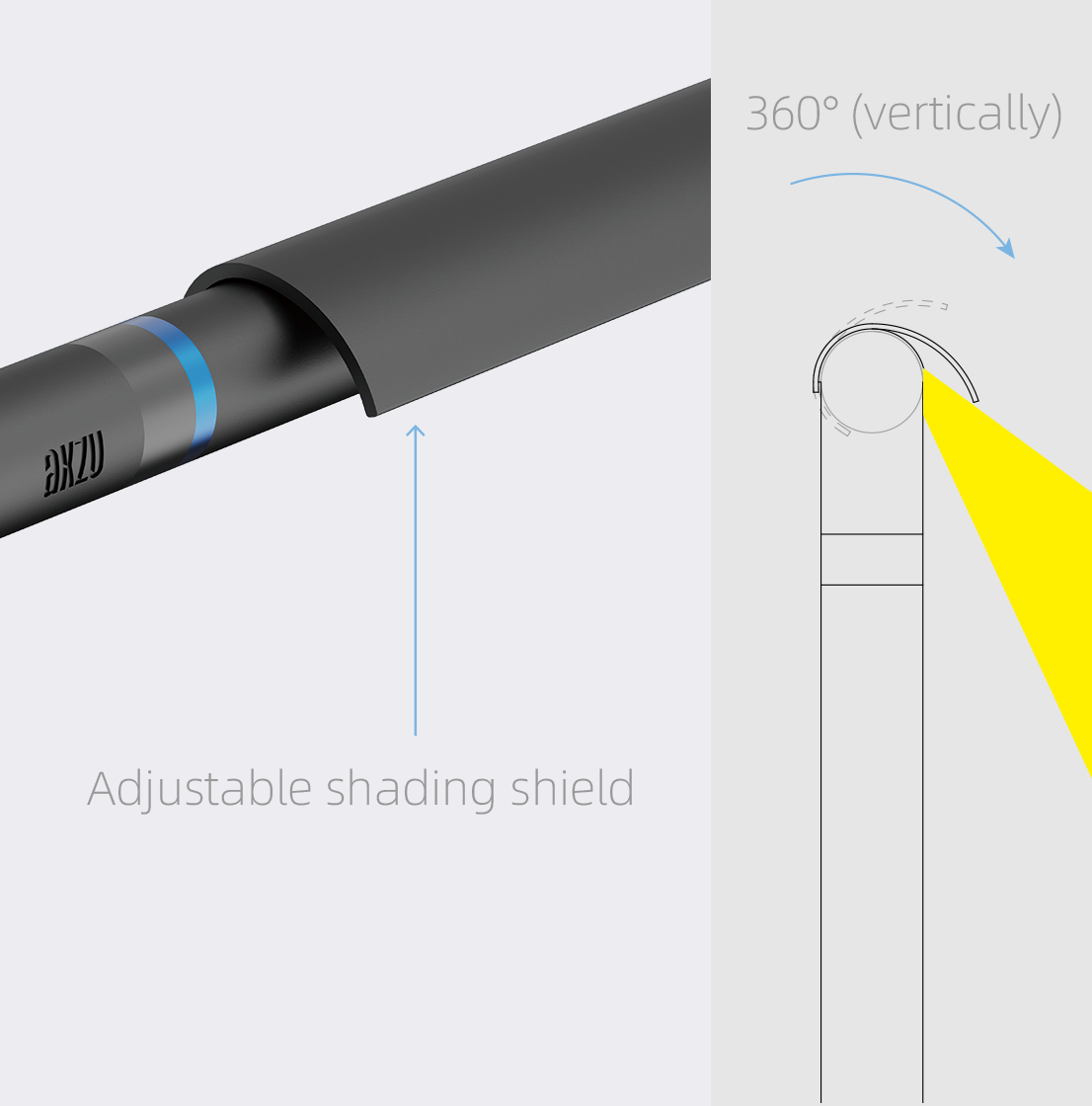

The elegant "Fibonacci curve" shading shield, 360° rotatable, eliminating glare and avoiding the reflected stray light.

Thin as 0.3mm, but quite straight, made of rolled carbide steel, 360° rotatable, matte black coating on the inside, contributing to eliminating glare.

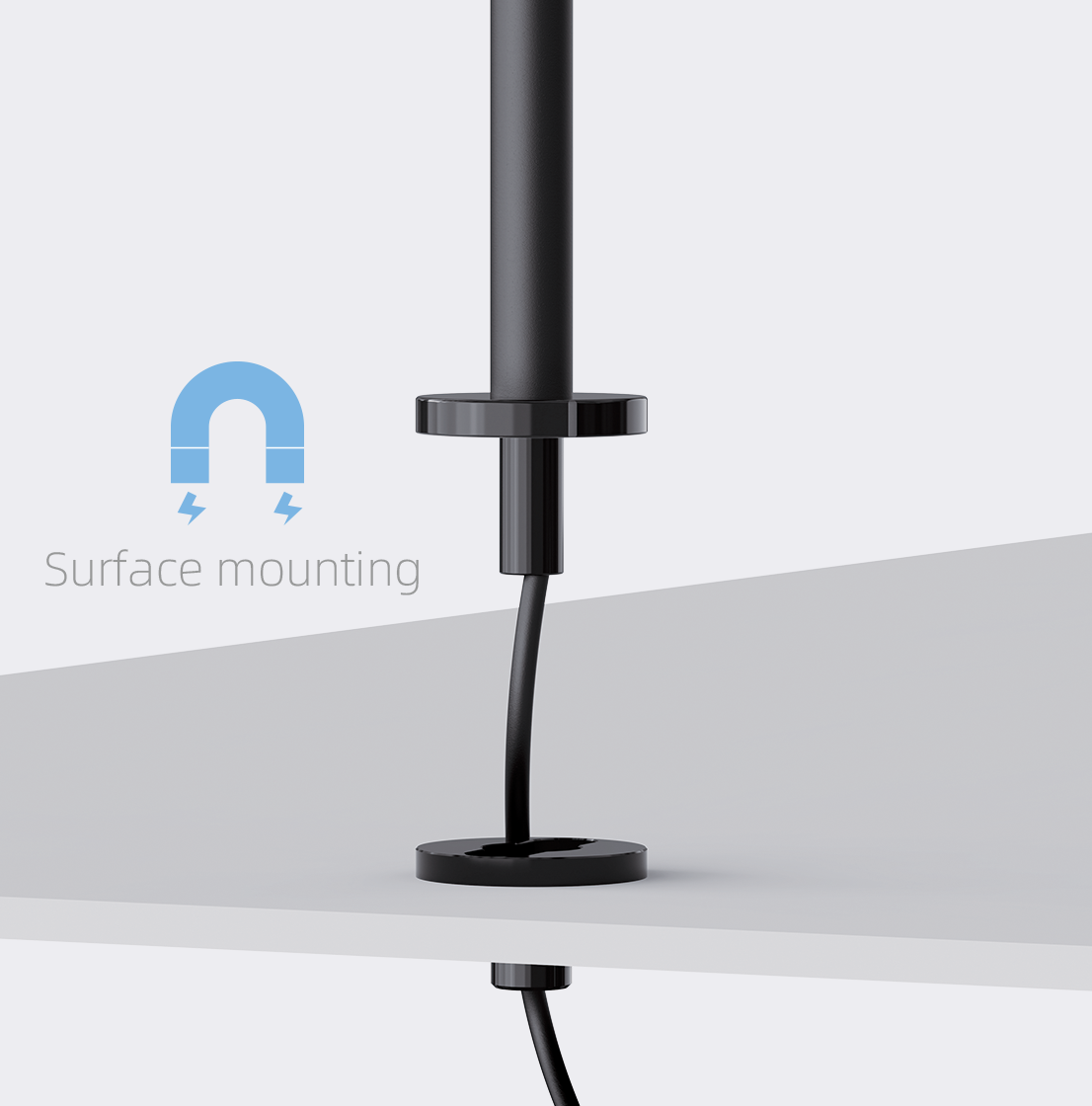

All installation procedures are completed on the display board, convenient, stable and safe.

Make the wire hole at the exact position, fix the magnetic mounting base, insert the bottom side of the pole through the hole and the pole can firmly adsorb on the mounting base.

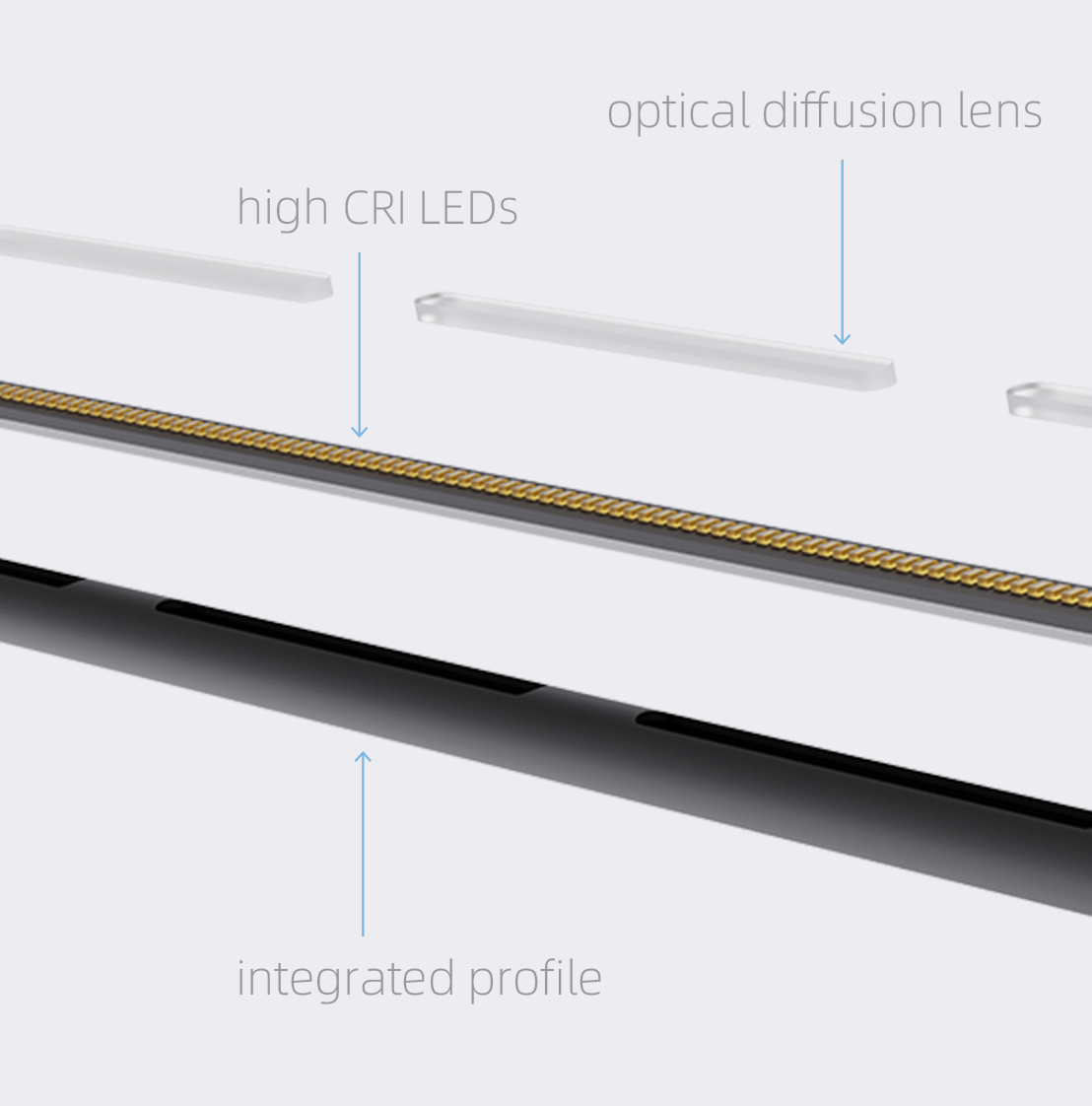

Highly integrated optics ensures optical continuity, efficient thermal management.

High CRI chips carefully arranged, the size and position of the light outlet accurately selected, together with the optical diffusion lens, Sprite X11 achieves highly uniform and continuous light color, while the lamps remain upright.

T-type bridge structure for continous lighting of 100-meter long showcases.

Unique T-type bridge components enables continuous power supply for multiple lamps, achieving glare-free tablewash lighting, creating an extremely shocking visual experience.

CRI can reach 97 with R9 up to 92.

The full color range ultra-high CRI improves the color sharpness and enhances the expression of details. The saturated and pure light vividly displays the cultural characteristics of exhibits and explores the true beauty of art.

An intelligent museum lighting system ensures artefact safety.

X11 supports intelligent lighting via DALI, Zigbee, and Bluetooth, allowing preset scenes and sensor-based control of intensity, duration, and exposure to protect light-sensitive artefacts.

Light Planning Guide

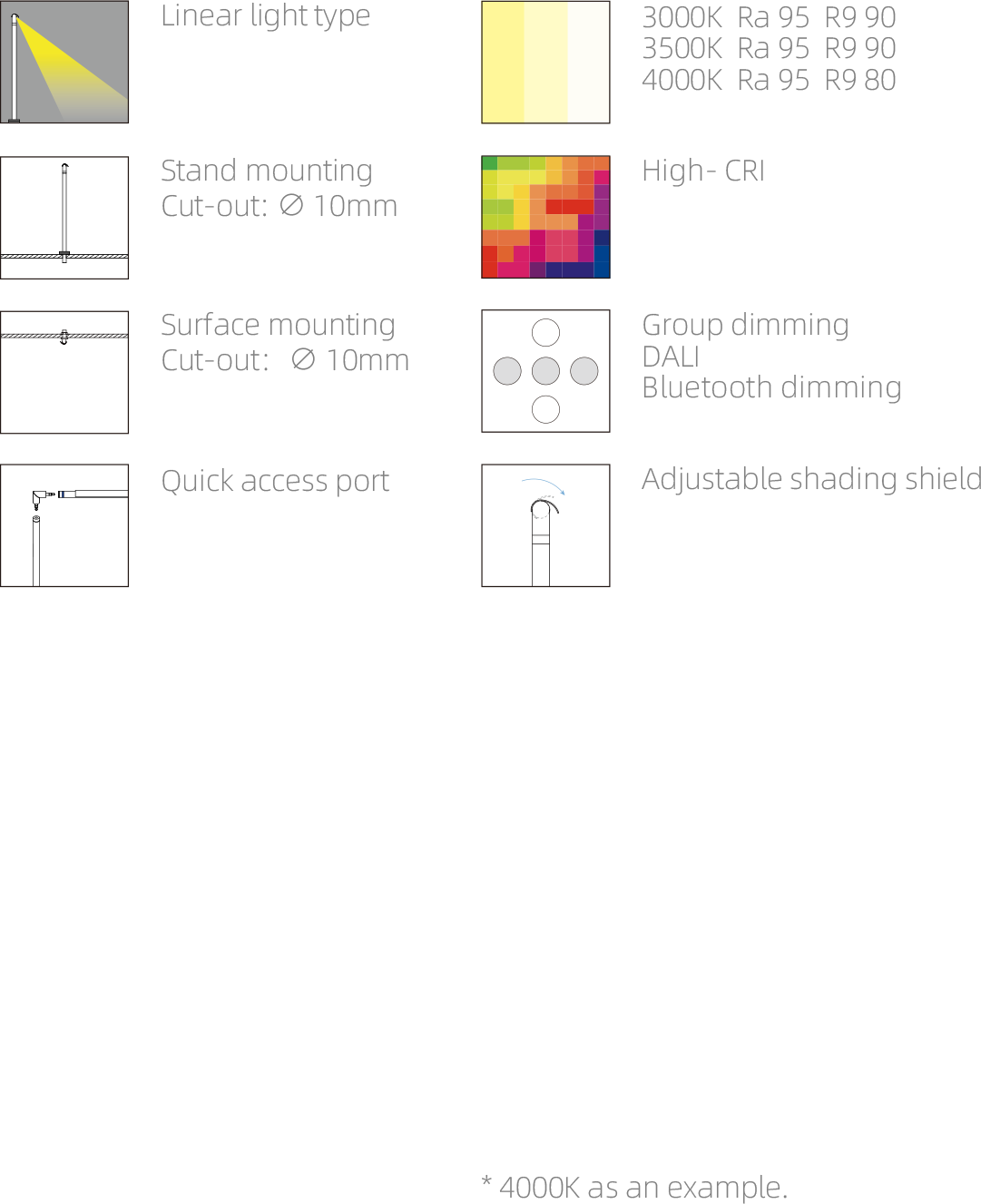

Sprite X11 Light Types and Beam Angle Distribution

Accessories and Product Customization

Color temperature

3000K, 3500K, 4000K, optional 2700K, 5000K, etc.

Control mode

Dimmer, DALI, phase-cut dimming, Casambi, etc.

Sprite X11 Product Specification & Lighting Design Data Download

AKZU provides detailed product specifications and lighting design data packages. You can download and integrate them directly into your lighting design projects.
Please filter products using the options below and click the product code to download the relevant files.

Power

Beam angle

Loading data...

1. Color temperature: 3000K, 3500K, 4000K, optional 2700K, 5000K, etc.

2. The listed luminous flux data is standard specification, higher luminous flux can be customized upon request.

3. The listed data takes 18W as an example, and the other data is referable at akzu.com.

4. The input voltage for a single lamp is 24V for group dimming, and the control mode can be customized as phase-cut dimming, bluetooth dimming, DALI, etc.

5. Stand mounting and surface mounting are available. The specific installation method is determined by the actual situation of the construction site.

6. The product codes only reflect color temperature, installation method, and appearance color. The power information is reflected in the first two digits of the code suffix. For example, the code for product of 3000K/stand mounting/White/9W is 906001.090.

7. For more information, please visit us at akzu.com.

Selected projects of Sprite X11 Museum Showcase Table Washer

Sprite X11, "zero glare", 1cm in diameter, 10 standard lengths ranging from 710mm to 1610mm. With the T-type bridge structure, it can be seamlessly adapted to the lighting for table showcases up to 100 meters long.
