Sprite X4

22mm extremely slender,
the new dimension of lens optic
museum showcases wallwasher.

akzu,museum showcase lighting,musuem showcase light,museum display case lighting,cultural relic display lighting,exhibition cabinet lighting,embedded display case lighting,suspended showcase lighting,constant temperature display lighting,anti-glare display case lighting,low lux display lighting,display spectrum optimization,flicker-free display lighting,UV-blocking display lighting,heritage protective display lighting,display illuminance uniformity,smart dimming for showcase,AI showcase lighting,display color rendering optimization,closed display case lighting,glass showcase lighting,museum exhibition cabinet lighting

Sprite X4 covers 30 cm to 100 cm in depth for museum showcases,
with a 1:1.3 installation distance ratio for simpler planning
and more convenient implementation.

The upgraded 2nd generation Sprite X4 museum showcase wallwasher adopts the new Dot optical lens. The wallwash lighting is more continuous and smooth horizontally, more evenly connected up and down, and can be used for installation distances as close as 30cm to 100cm. Power of 6W and 9W, 120mm in length, only 22mm in width, 60° deep anti-glare, 20° tilt and simple 1.3 spacing/ wall distance ratio, making wallwash lighting design and implementation simpler and more effective.

Sprite X4 has a unique wedge-shaped structure, designed specially for wallwash lighting of museum tall showcases, general showcases, and calligraphy and painting showcases. X4 clearly and comfortably presents flat calligraphy and painting exhibits or background descriptions.

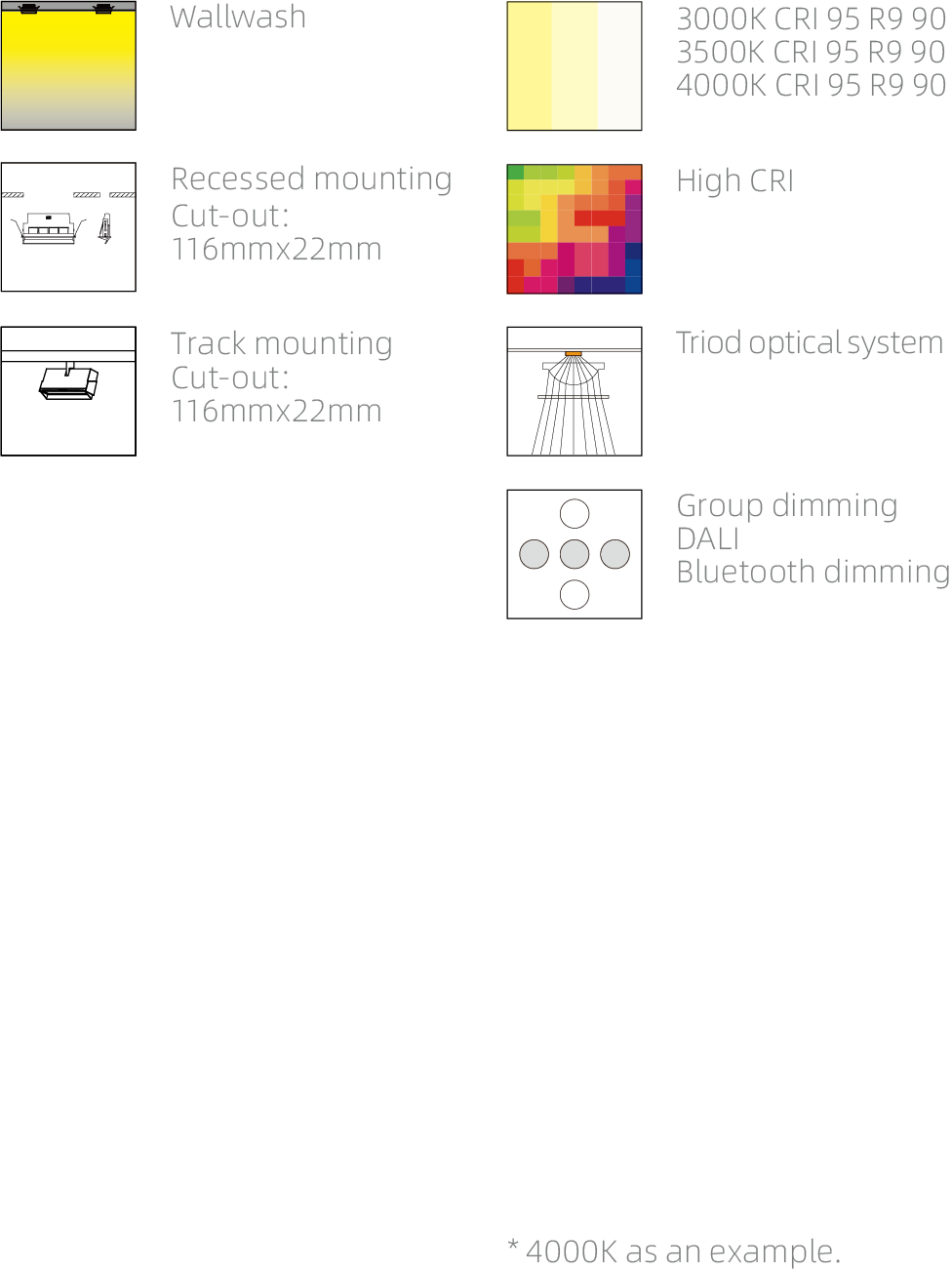

Suitable for general showcases and tall showcases.

Wattage: 6W, 7W, 9W
Input voltage: 9V
LED module: high-power LEDs, collimating Dot lens, LED life span over 50000 hours
Beam angle: Wallwash
Color temperature: 3000K, 3500K, 4000K, optional 2700K, 5000K, etc.
Color rendering index: 95
Luminous flux*: 570lm~840lm
Installation method: recessed mounting
Control mode: DALI, group dimming, phase-cut dimming, bluetooth dimming, and etc.
Brightness control range: 0-100%
Color: white, black
Housing: cast aluminium, powder-coated
Front cover: new PC + glass fiber

Sprite X4 Technical Specifications

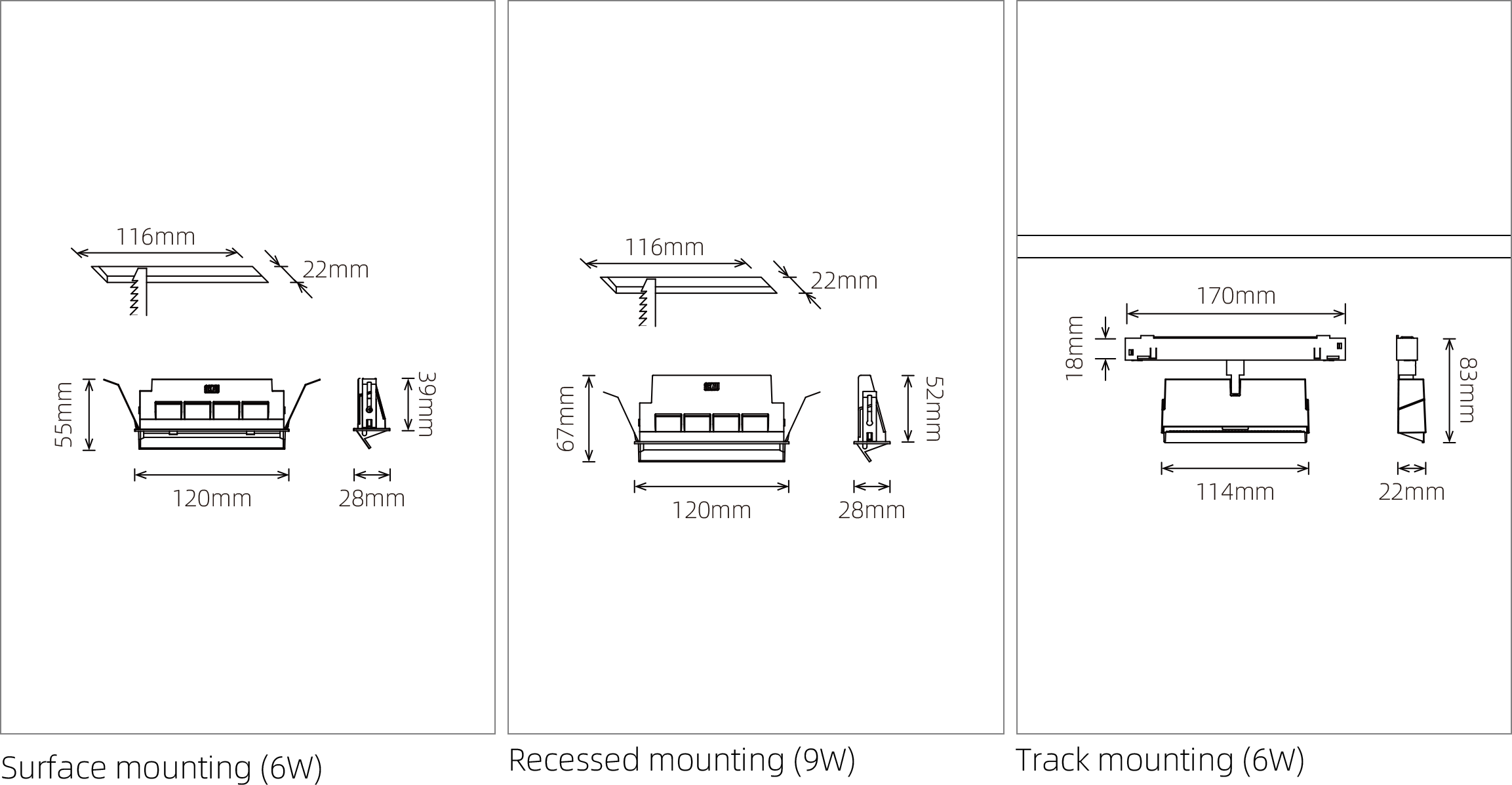

Product construction size

Powers & Light Distribution*

*Power refers to total system power; luminous flux data is based on LED module output.

Features

20° tilt design matches different installation distances, precise calculation makes the wallwash lighting smoother and more connected from top to bottom.

Sprite X4 museum showcase wallwasher is specially designed for museum showcases. With properly planned installation positioning, it delivers a uniform and consistent wallwashing effect without the need for further adjustment. Featuring parallel illumination, it achieves smooth and even top-to-bottom lighting.

The 1:1.3 installation distance ratio makes wallwash lighting planning simpler and implementation more convenient.

It is very easy to achieve an ideal wallwashing effect with the ratio. For example, when the lamps are installed 60cm away from the wall, the distance between the lamps is 60cm x 1.3 = 78cm.

Fully sealed installation to protect the constant temperature and humidity environment.

The heat sink is separated from the front cover and placed outside the showcase, minimizing heat transfer into the display area and providing better protection for heat-sensitive exhibits.

Cut-out size of only 2.2cm x 11.6cm, allows for easy and convenient recessed installation on showcase ceilings with 1mm-20mm thickness.

The appropriate structure and size of spring clips with well-tested thickness and material, make the installation easy, even with one hand.

54° shading, comprehensive glare-free design.

The scientifically set initial physical tilt strictly controls the light exposure range, while adding a 5mm back shading eaves to bring the shading angle in the direction of the audience close to 54°, completely eliminating glare.

Wedge-shaped recessed integrated design, optimized heat dissipation effect.

Exquisite wedge-shaped structure design, optics and lamp body are cast in one piece, greatly increasing the heat dissipation surface upward, effectively reducing the temperature inside the showcases.

CRI can reach 97 with R9 up to 92.

The full color range ultra-high CRI improves the color sharpness and enhances the expression of details. The saturated and pure light vividly displays the cultural characteristics of exhibits and explores the true beauty of art.

An intelligent museum lighting system ensures artefact safety.

X4 supports intelligent lighting via DALI, Zigbee, and Bluetooth, allowing preset scenes and sensor-based control of intensity, duration, and exposure to protect light-sensitive artefacts.

Light Planning Guide

Sprite X4 Light Types and Beam Angle Distribution

Sprite X4 Installation Guide

Accessories and Product Customization

Color temperature

3000K, 3500K, 4000K, optional 2700K, 5000K, etc.

Control mode

Dimmer, DALI, phase-cut dimming, Casambi, etc.

Sprite X4 Product Specification & Lighting Design Data Download

AKZU provides detailed product specifications and lighting design data packages. You can download and integrate them directly into your lighting design projects.
Please filter products using the options below and click the product code to download the relevant files.

Power

Beam angle

Loading data...

1. Color temperature: 3000K, 3500K, 4000K, optional 2700K, 5000K, etc.

2. The listed luminous flux data is standard specification, higher luminous flux can be customized upon request.

3. All data and specifications are typical and for reference only, and may be changed due to product upgrade without prior notice.

4. Control mode can be customized as phase-cut dimming, bluetooth dimming, and etc.

5. For more information, please visit us at akzu.com.

Selected projects of Sprite X4 Museum Showcase Wallwasher

Sprite X4 covers 30 cm to 100 cm in depth for museum showcases, with a 1:1.3 installation distance ratio for simpler planning and more convenient implementation.
